Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Engine Circuit
Engine Circuit

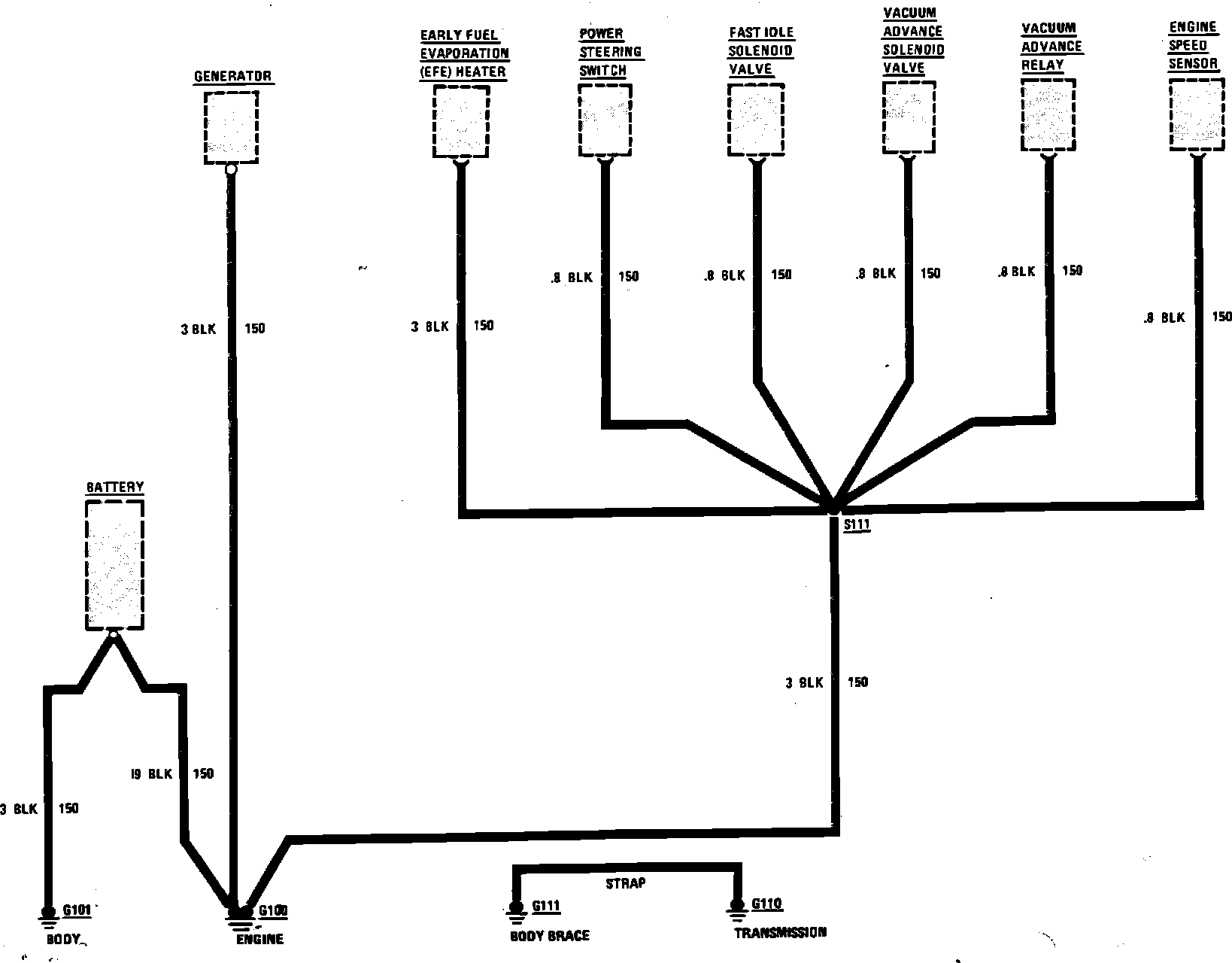

Ground Distribution (Engine Circuit):
