Home
>>
Chevrolet
>>
1984
>>
Chevette L4-98 1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Heater Control Wiring Circuit
Heater Control Wiring Circuit

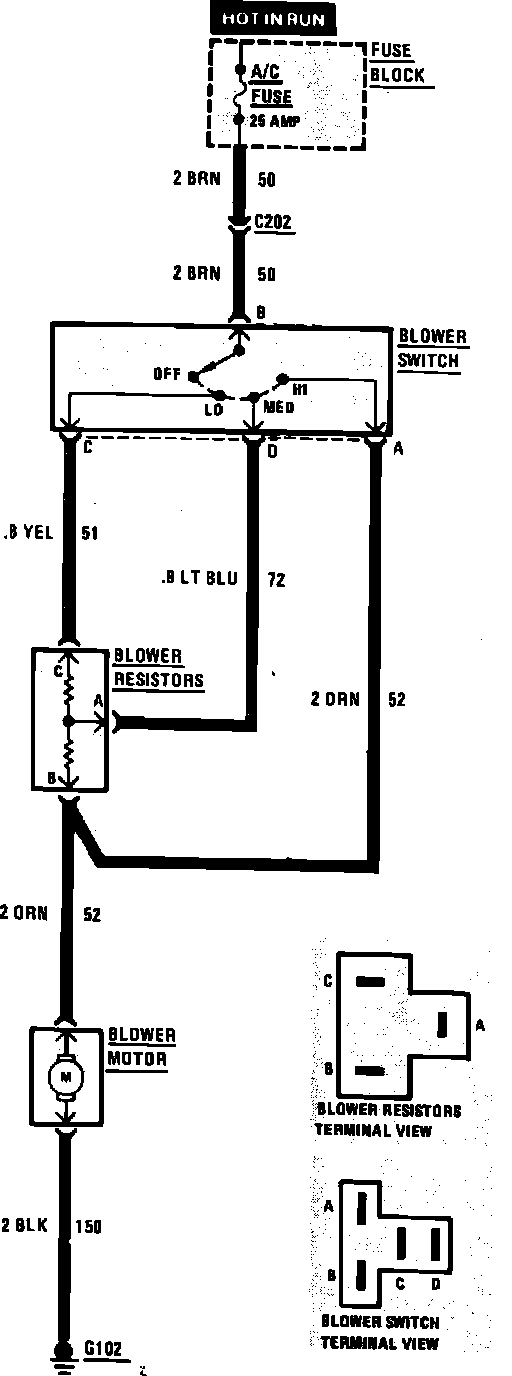

Heater Wiring Circuit:
