Chart C-2B Stepped Speed Control (SSC) Check

Fig. 038 - Wiring Diagram for Chart C-2A SSC With A/C and Automatic Transmission. VIN C:

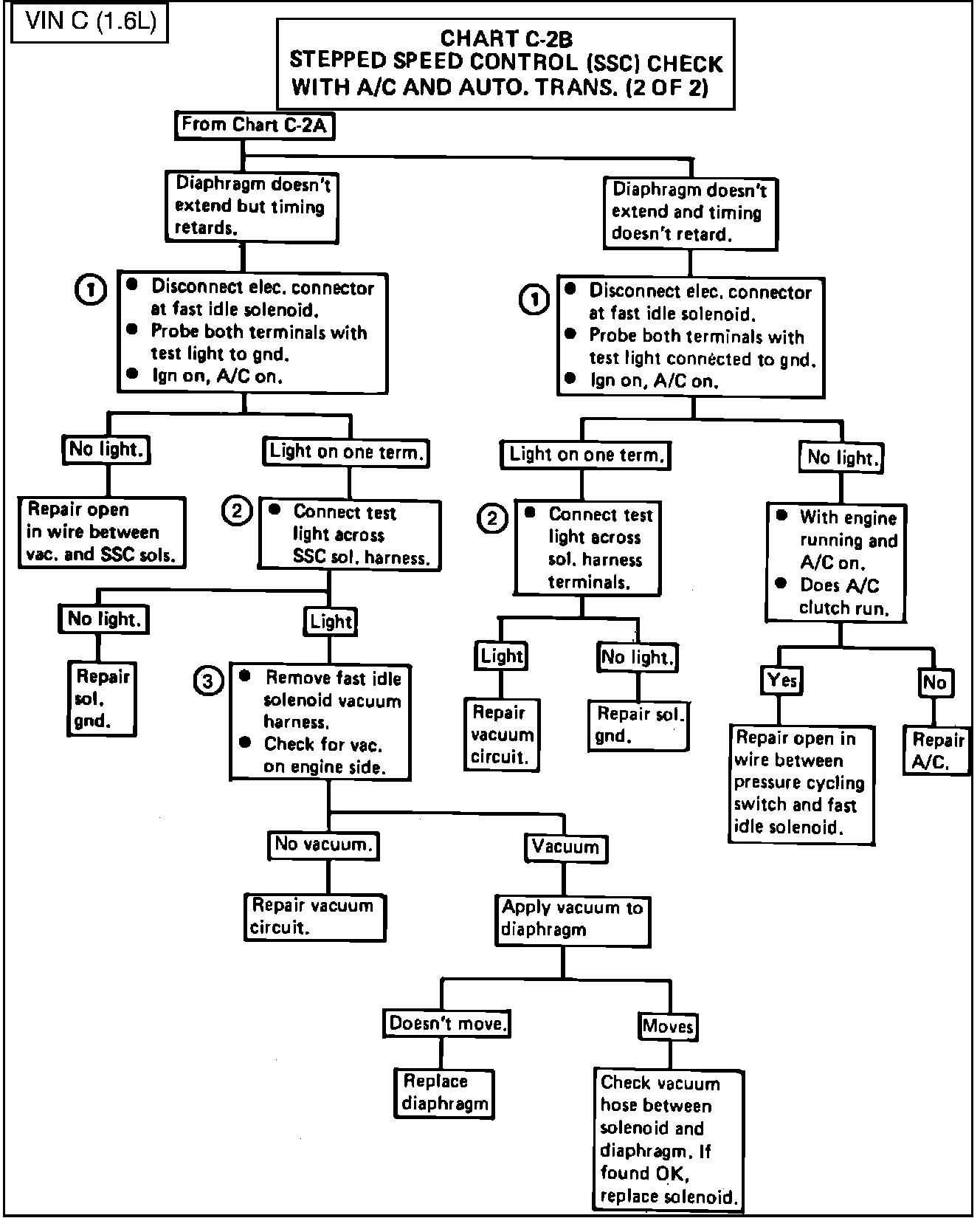

Fig. 039 - Chart C-2B Stepped Speed Control (SSC) Check (2 of 2).:

CHART C-2B, SSC WITH A/C AND AUTO. TRANS.

1. Checks for 12V signal to solenoid.
2. Checks solenoid ground wire and connection.
3. Vacuum should be present with engine running.
