EGR System Wiring: 1984-86 VIN D (1.8L Diesel)
EGR System Wiring: 1984-86 VIN D (1.8L Diesel)

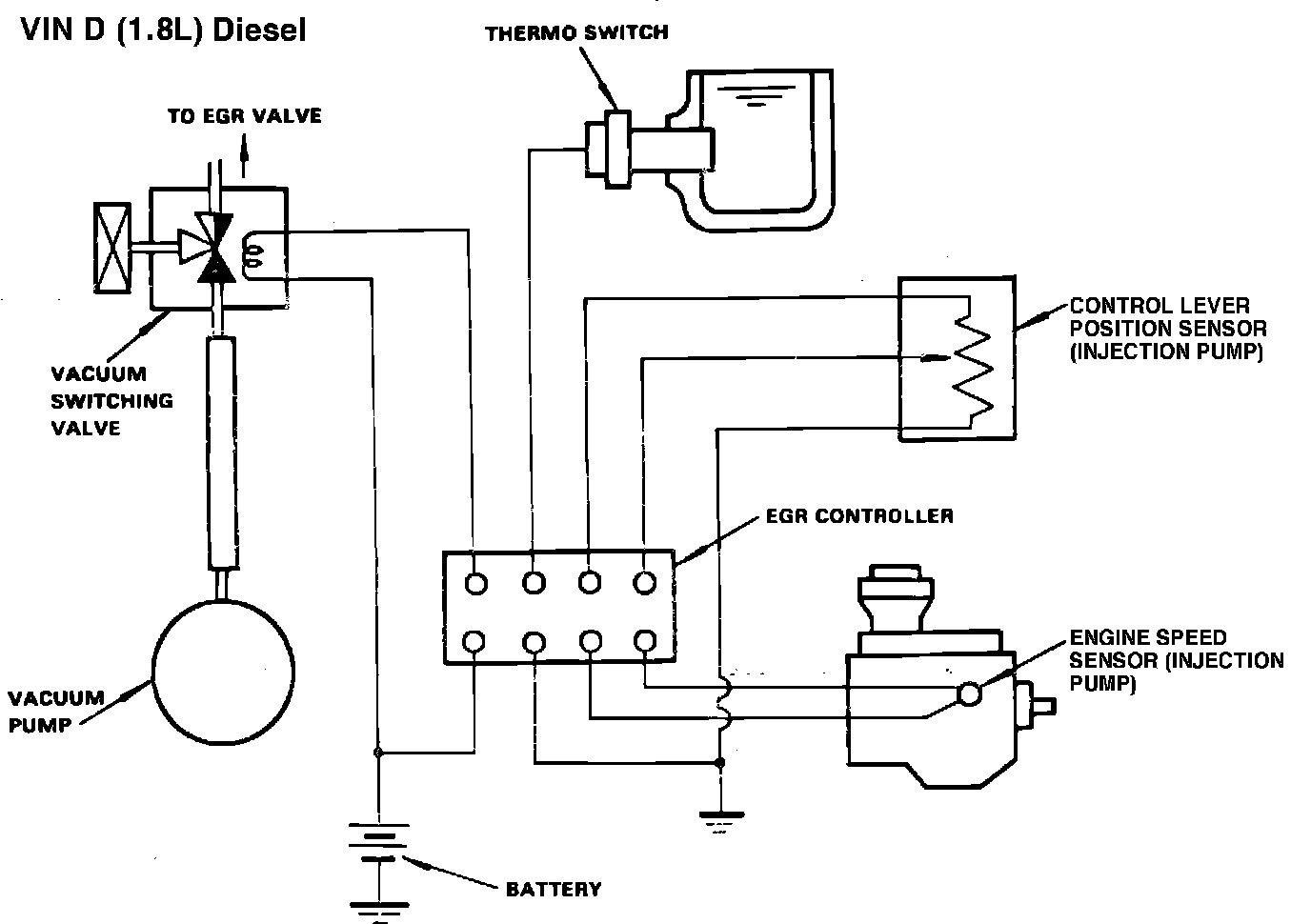

Fig. 017 EGR System Wiring (Add, p. 13-21):
