Chevrolet
>>
1984
>>
Chevette L4-111 1.8L DSL
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

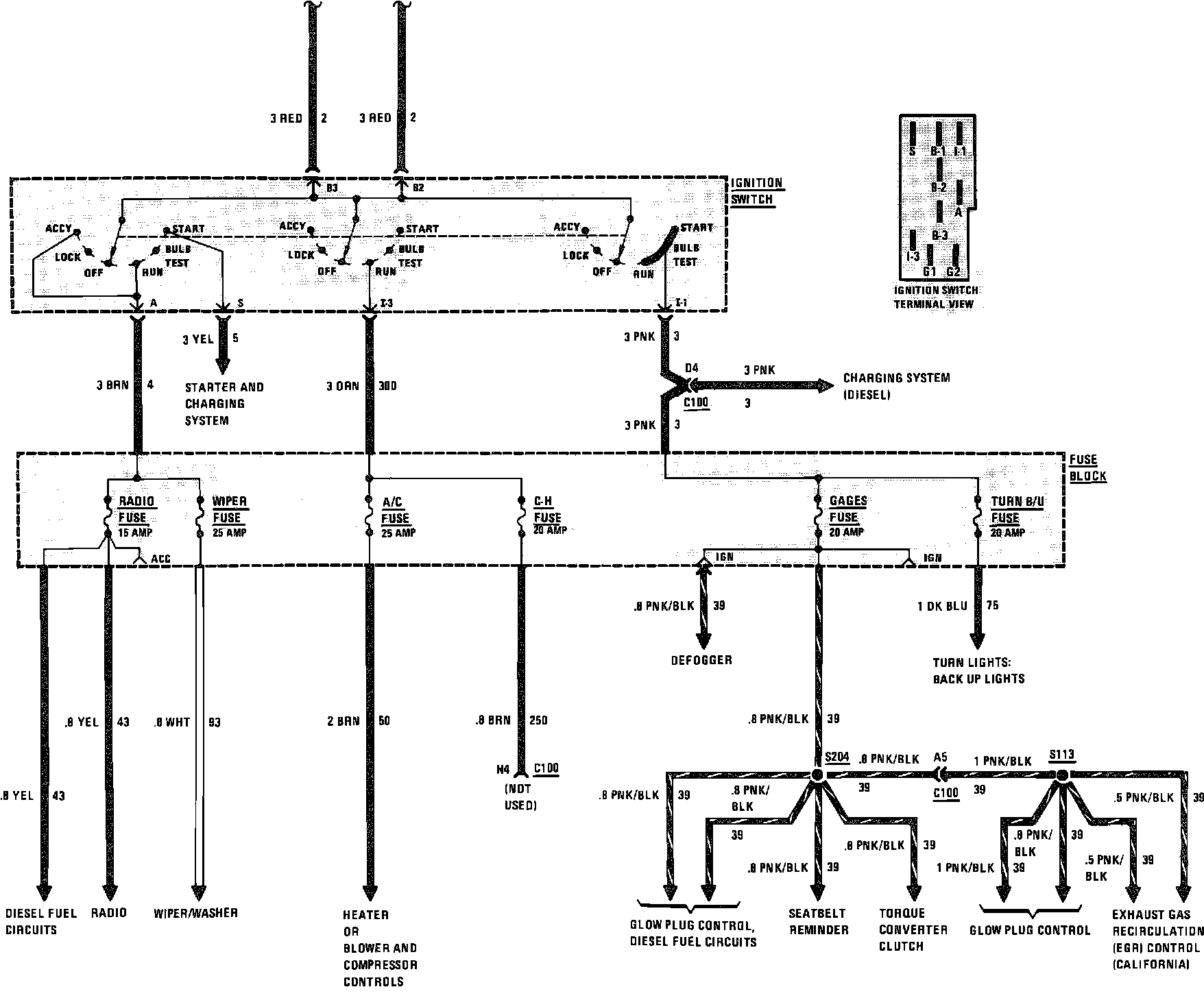

Power Distribution Wiring Circuit
>>
Diesel Engine (Part 2 of 2)
Diesel Engine (Part 2 of 2)
Power Distribution:
