Instrument Panel, Gauges and Warning Indicators
>>
Clock
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

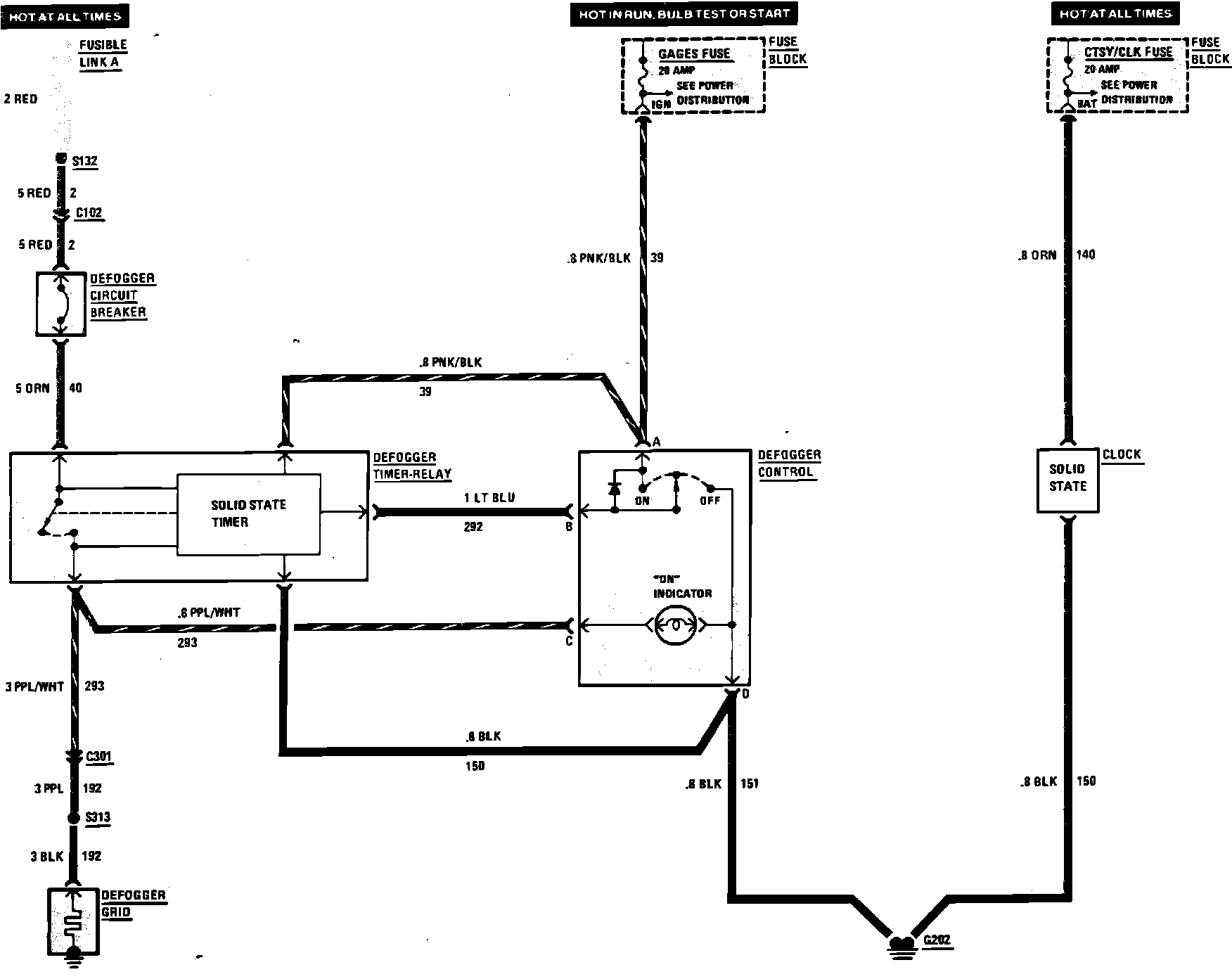

Clock & Rear Window Defogger Wiring Circuit:
