Air Select Switching Valve

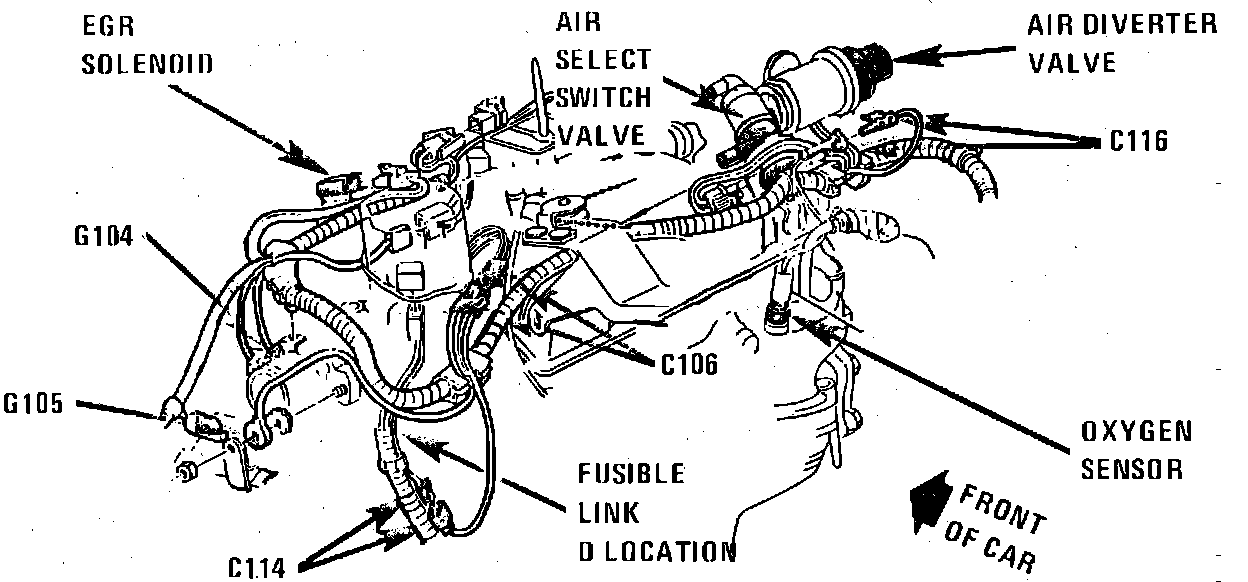

Rear Of Engine.:




On RH Side Of Rear Valve Cover

Applicable to: 1982-83 Celebrity w/V6

LH Rear Of Engine.:




On RH Side Of Rear Valve Cover

Applicable to: 1984-85 Celebrity w/V6-173 VIN X
