Wipers - Intermittent Operation

Number : 84-35

Section: 8B (XII)

Date : Dec., 1983
Subject: INTERMITTENT WIPER OPERATION


Model and Year: 1984 CELEBRITY, CAMARO, MONTE CARLO, EL CAMINO AND CORVETTE
TO: ALL CHEVROLET DEALERS


Some pulse and standard permanent magnet depressed park wiper motors may exhibit intermittent operation in any mode. This condition may be due to the grounding tab attached to the motor end cap not contacting the round motor case.

-Wiper Motor:

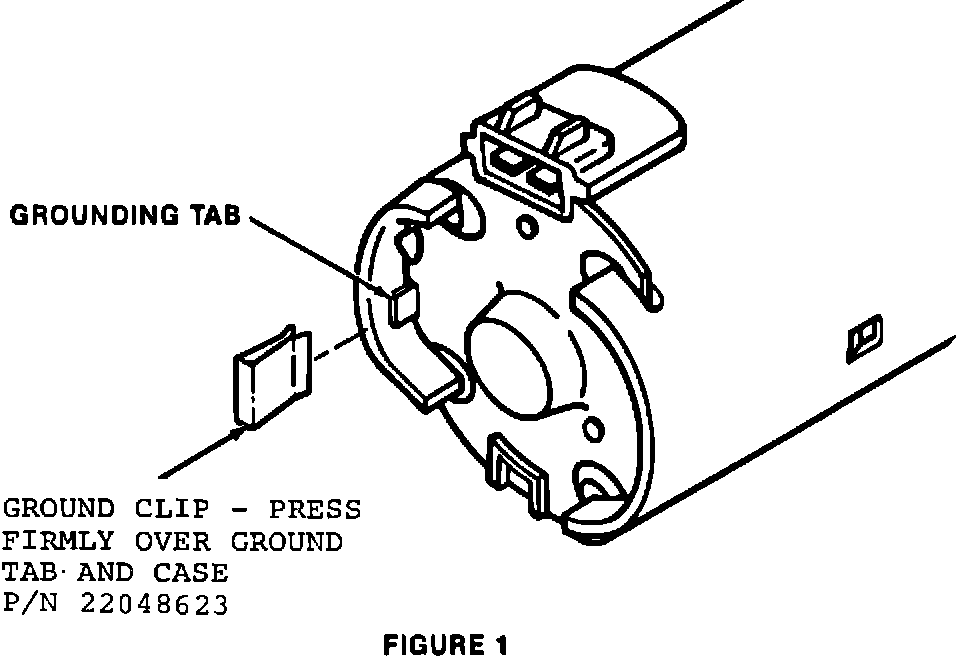

CORRECTION: Attach ground clip, P/N 22048623, (Figure 1) to the end of the round motor case over ground tab.
