A/T - THM 125C Case Cover P/N Correction

84-254
7A
JUNE, 1985
Subject: CASE COVER PART NUMBER CORRECTION
Model and Year: 1984 THM 125C (SEE MODELS BELOW)
TO: ALL CHEVROLET DEALERS
This bulletin is being reissued with corrections and replaces Chevrolet Dealer Service bulletin 84-250 dated April, 1985 which should be destroyed.

The October, 1984 and also the January and February 1985 issue of the Warehousing Distribution Division General Motors (WDDGM) Parts Catalog incorrectly lists some 1984 model year THM 125C Case Cover part numbers. WDDGM Service Parts Action Bulletin #85-10, issued February 22, 1985, correctly lists the service usage part numbers.

Listed below are the model year, transmission models, and CORRECT service usage part number and identification.

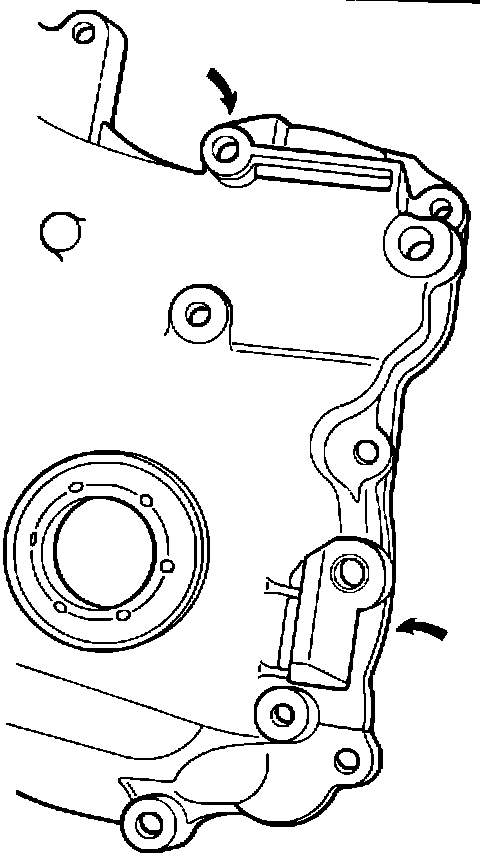

FIGURE 1 CASE COVER I.D. OF 8653968:

INCORRECTLY CORRECT
MODEL TRANSMISSION LISTED PART SERVICE USAGE
YEAR MODELS NUMBERS PART NUMBERS IDENTIFICATION

1984 CA,CB,CF,HC,HY 8653950 8653968 Refer To Figure
supercedes For Identification
8653951 Of 8653968

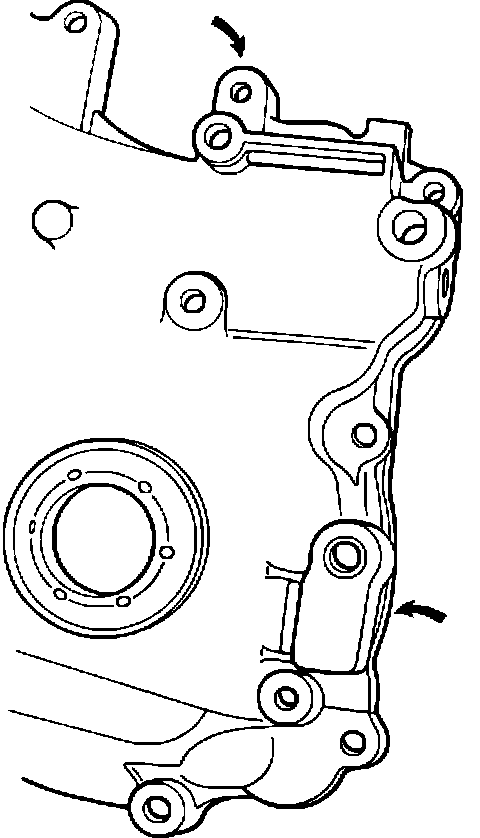

FIGURE 2 CASE COVER I.D. OF 8653969:

1984 CL,CK,CT,CC,CI, 8653951 8653969 Refer To Figure 2
OP,HM,HS,HV,HP, supercedes For Identification
HX 8653950 Of 8653969
