A/T - New Torque Converter Clutch Soleniod Screen
Number: 85-6Section: 7A (VIIc)
Date: Oct., 1984
Subject: NEW TORQUE CONVERTER CLUTCH SOLENOID SCREEN
Model and Year: ALL THM 440-T4
TO: ALL CHEVROLET DEALERS
Beginning with the Julian dates listed in the chart below, a new torque converter clutch solenoid screen, "O" ring and valve body spacer plate assembly went into production on all model THM 440-T4 transmissions.

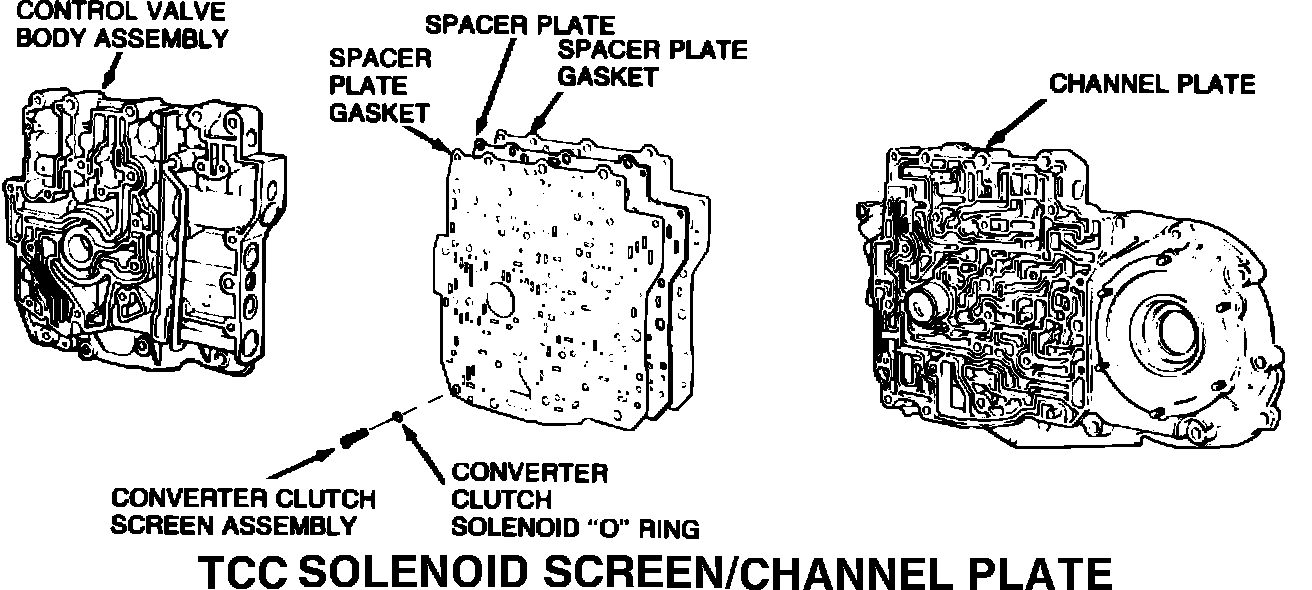

TCC Solenoid Screen/Channel Plate:
Transmissions built prior to these Julian dates have the past TCC solenoid screen which sits in a pocket in the channel plate and under the spacer plate. Transmissions built starting on these Julian dates have the new TCC solenoid screen and "O" ring which snaps onto the new spacer plate assembly (see the illustration for installation of the new parts).
NOTICE: If replacement of the spacer plate is required, the past TCC solenoid screen must be discarded and the new solenoid screen and "O" ring must be installed. Refer to chart below for part numbers and model applications.
JULIAN SPACER TCC SOLENOID
MODEL DATE PLATE SCREEN "O" RING
AY 191 8658062
BA 192 8658072
BC 198 8658072
BS 224 8658064 ALL MODELS ALL MODELS
BN 194 8658064 (8658060) (8658109)
CW 192 8658354
OB 192 8658032
OY 192 8658070
