Chevrolet
>>
1984
>>
Celebrity L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

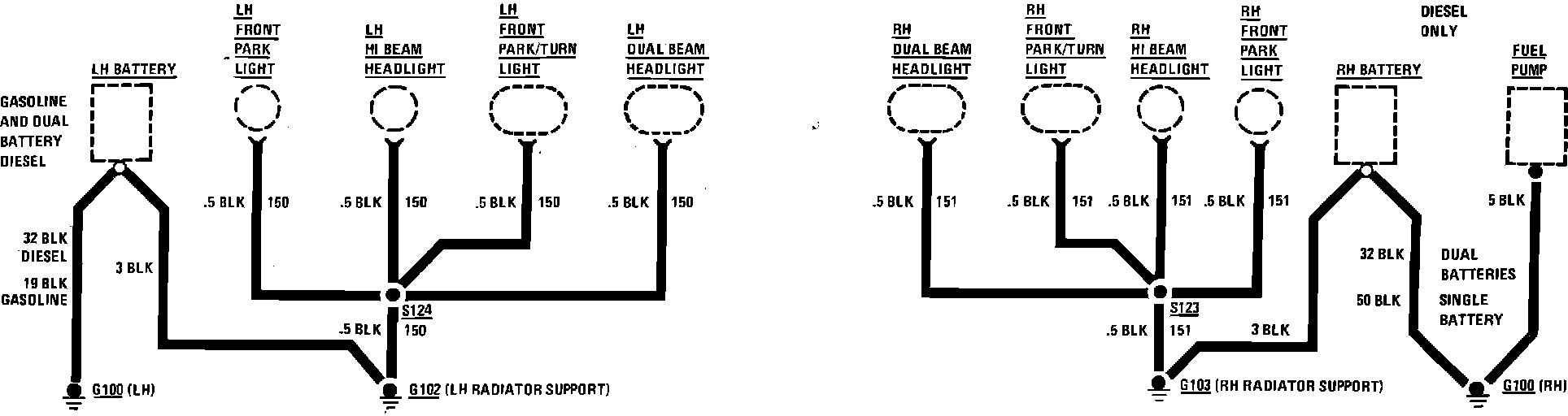

Front Lighting Ground Distribution
Front Lighting Ground Distribution
Front Lighting Ground Distribution:
