Generator (Alternator) Belt - Damage
Number: 84-75Section: 6A (VI)
Date: Feb., 1984
Subject: GENERATOR (ALTERNATOR) BELT DAMAGE ON 2.5L ENGINES (CODE R)
Model and Year: 1983-84 CITATION AND CELEBRITY
TO: ALL CHEVROLET DEALERS
Generator (alternator) belt damage on the above models may be due to the belt contacting a bolt head on the power steering pump bracket.

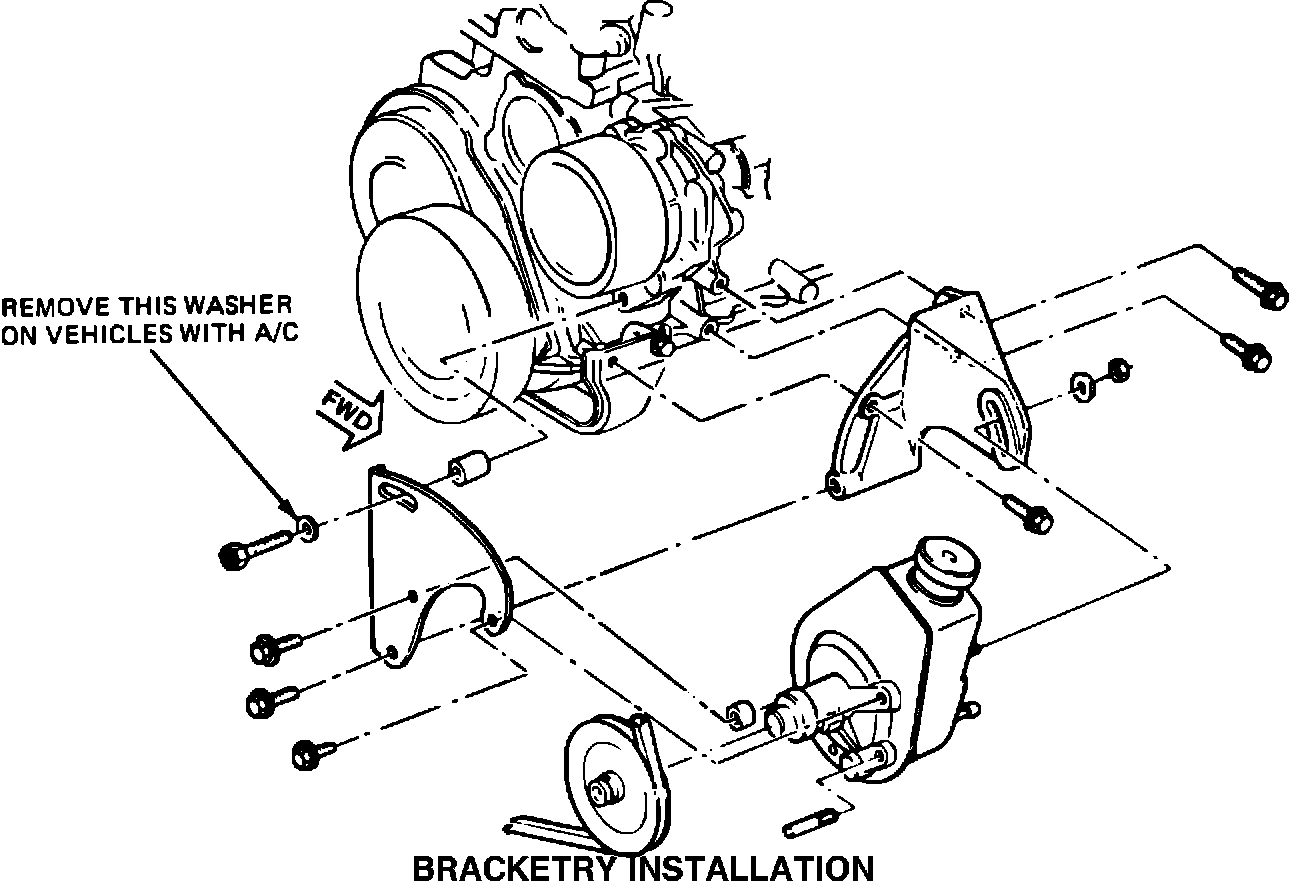

Bracketry Installation:
If this condition is encountered, inspect the bracketry installation. Vehicles equipped with air conditioning should have the flat washer under the adjustment bolt head removed (see illustration).
In addition, a new belt is being released for replacement. The new belt, P/N 10034798, will not be available for approximately sixty (60) days. Until this belt is available, P/N 10029075, which is the current Fiero belt, should be used.
Replacement belts should be tensioned to 650 N-m (145 lbs.).
