A/T - Flare or Slips On Turns
Number: 87-168Section: 7A
Date: JUNE, 1987
Subject: FLARE OR SLIPS ON TURNS
Model and Year: 1984-87 CELEBRITY WITH
THM 440-T4 TRANSAXLE
TO: ALL CHEVROLET DEALERS
A condition of engine flare or transmission slippage during vehicle turns may be repaired by installing a new filter.

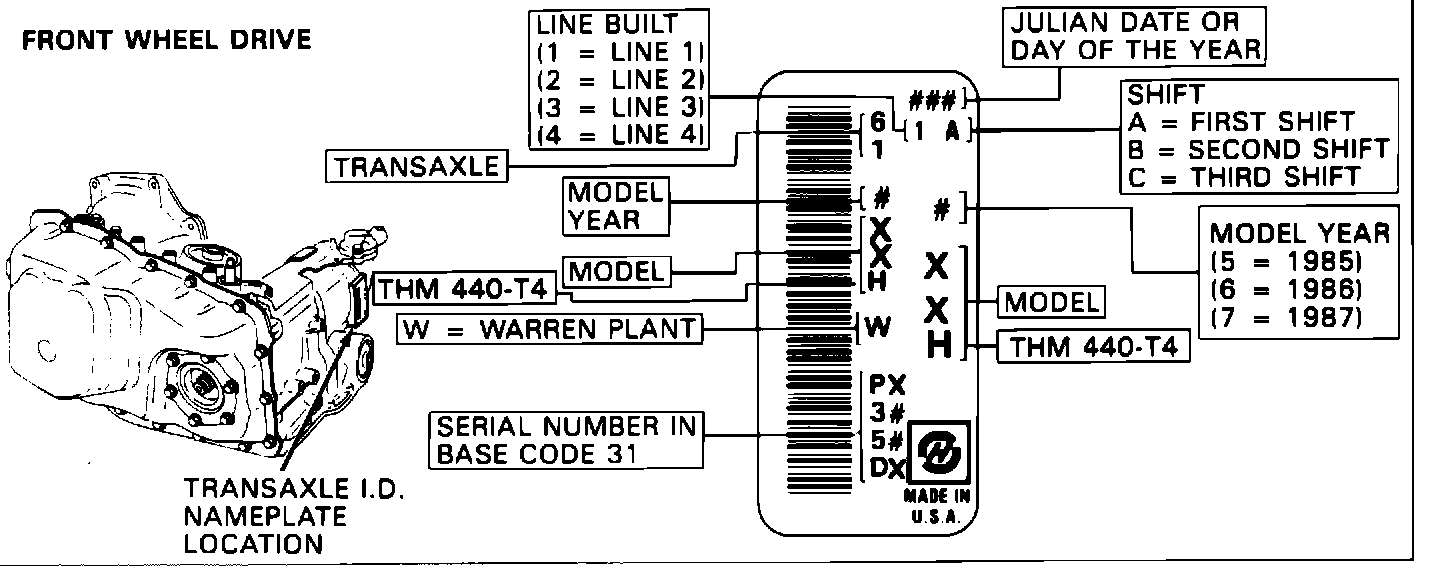

FIGURE 1 - THM 440-T4 TRANSAXLE IDENTIFICATION INFORMATION:
The filter with a new inlet and baffle design entered production April 6, 1987, (Julian date 096, Figure 1).
Check for proper fluid level and correct, as necessary. If the flare still occurs, remove the bottom pan and replace the filter and seal with a new filter and seal package listed below.
Part Name Part Number
Filter and Seal Package 8646902
