Chevrolet
>>
1984
>>
Celebrity L4-151 2.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
License Plate Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

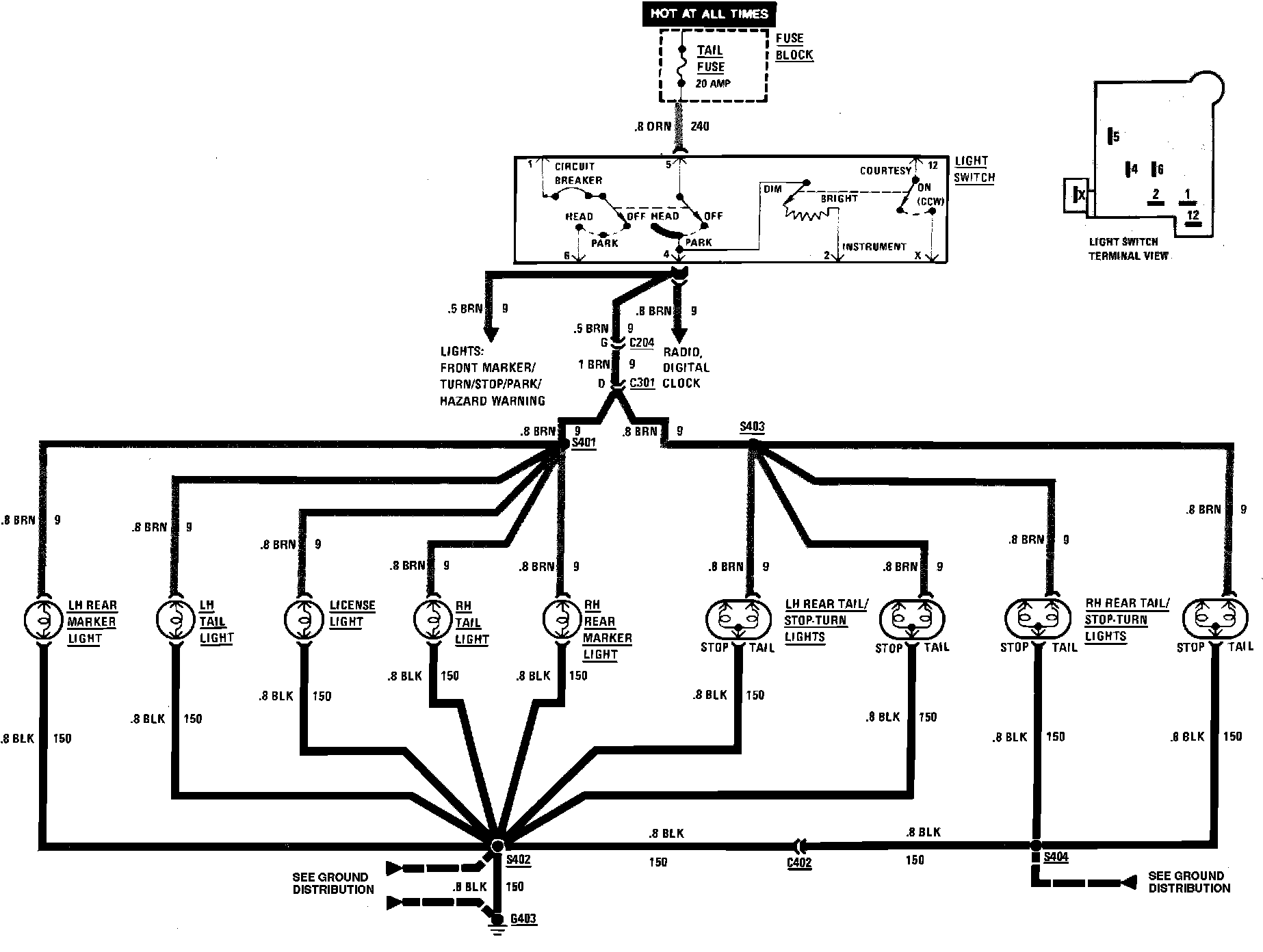

License Plate, Rear Marker & Tail Lamp Wiring Circuit:
