Park Brake - Equalizer Rattle
Number: 87-113Section: 5
Date: APRIL 1987
Subject: PARK BRAKE EQUALIZER RATTLE
Model and Year: 1982-87 CELEBRITY
PARKING BRAKE EQUALIZER INSULATOR:
TO: ALL CHEVROLET DEALERS

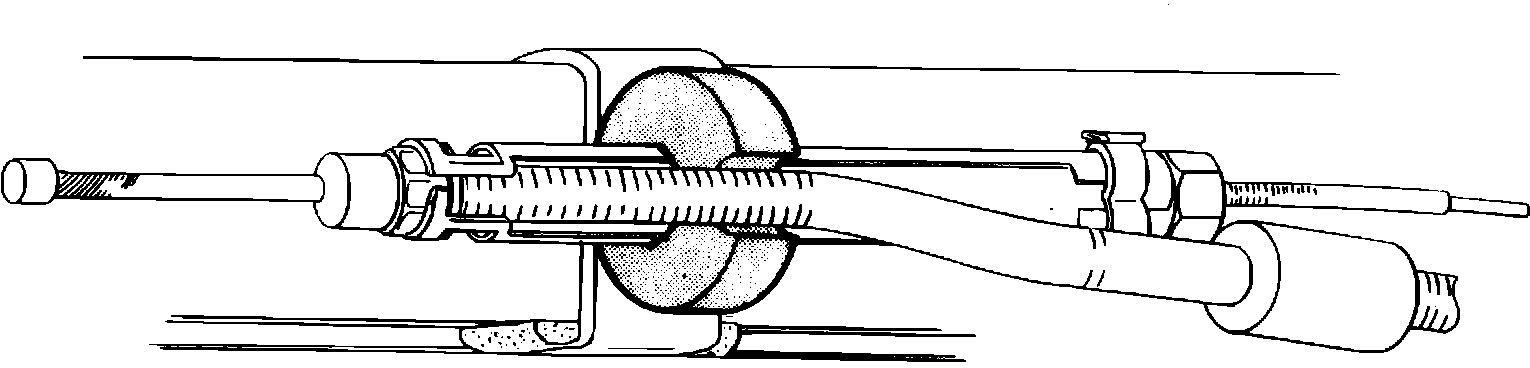

Some vehicles may develop a rattle at the park brake equalizer located on the forward side of the rear axle. This rattle can be eliminated by the installation of an insulator. (See Illustration). To install the insulator, loosen the park brake adjuster until the front cable can be removed from the cable connector (located at the end of the right hand cable). Remove the front cable from the equalizer and install the insulator.
Reinstall the front cable and adjust the park brake per the Service Manual.
PARTS INFORMATION
Insulator P/N 10055178
Labor Operation Number: T1209
Labor Time : 0.6 Hours
