Brake Warning Indicator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

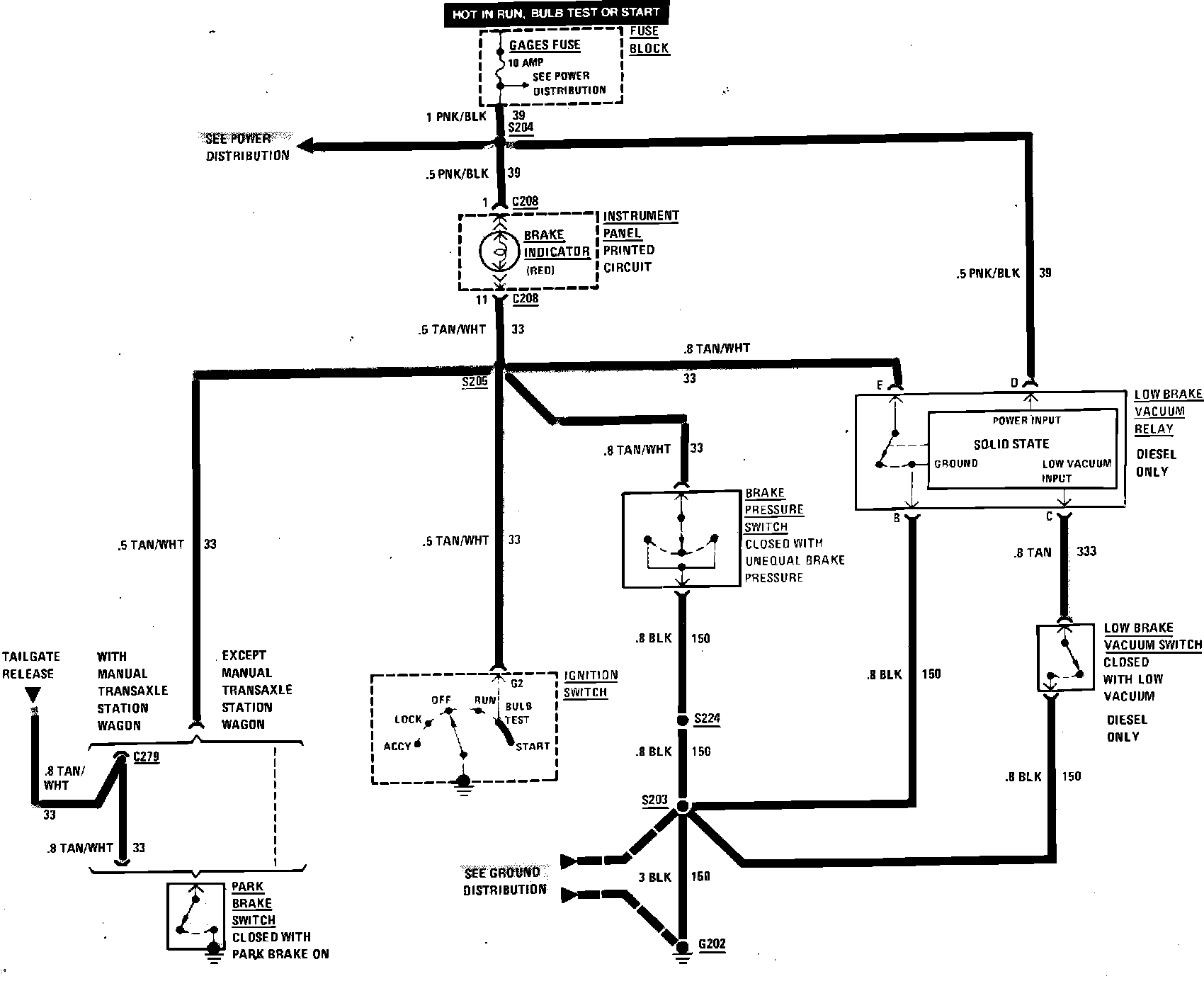

Brake Warning System Wiring Circuit:
