Rear Compartment Lid - Service Hinge Replacement

Number: 87-03

Section: 10

Date: SEPT., 1986
Subject: REAR COMPARTMENT LID SERVICE HINGE REPLACEMENT


Model and Year: 1982-1987 CELEBRITY TWO DOOR (A19, A27) WITH REAR SEAT SHOULDER BELTS


TO: ALL CHEVROLET DEALERS


Replacement of a rear compartment lid hinge on a vehicle equipped with rear seat shoulder belts may require modifying the hinge.

Modification of Replacement Part Hinge Assembly:

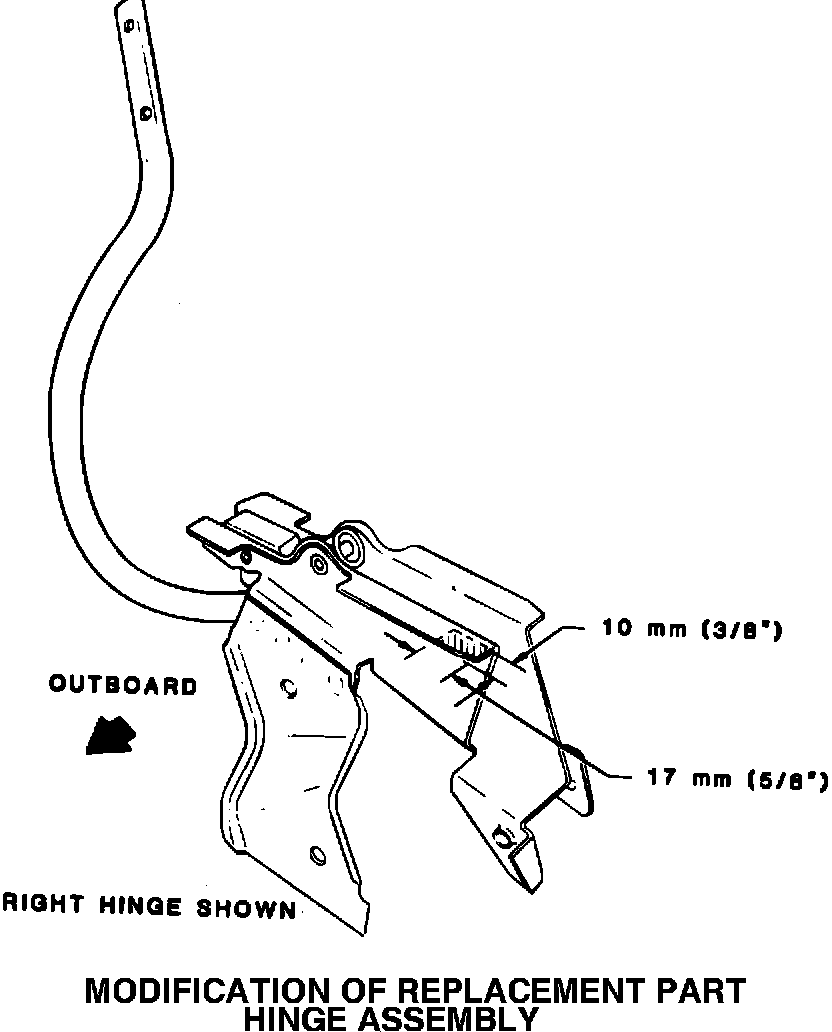

This modification is to cut a notch in the outboard flange of the replacement part hinge assembly as shown in the illustration.
