Splash Shield - Snapping Noise

Number: 84-203

Section: 3B (IX)

Date: Oct., 1984
Subject: FRONT WHEELHOUSE SPLASH SHIELD CONTACTING STEERING TIE ROD IN STEERING AND WHEEL JOUNCE MOTIONS

Model and Year: 1984 CAVALIER
TO: ALL CHEVROLET DEALERS


A snapping noise may occur on some 1984 Cavaliers during steering or wheel jounce motions, especially during cold weather.

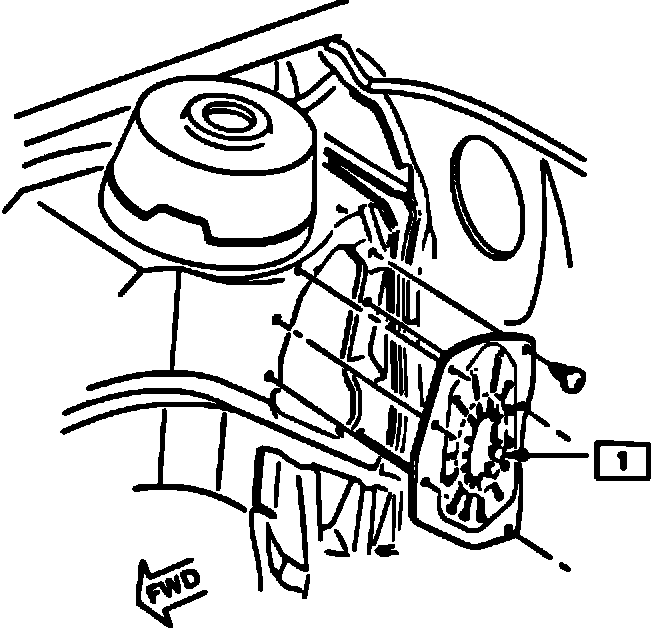

1-SHIELD OPENING (TO BE ENLARGED BY APPROXIMATELY 15 mm):

This condition may be caused by contact between the front wheelhouse splash shield and the steering tie rod, and can be corrected by enlarging the splash shield opening by approximately 15 mm (9/16 in.) around its entire circumference, using a knife or shears.
