Stabilizer Bar Insulator Bushing - Squawk, Part Numbers

Number: 86-53
Section: 3C
Date: Apr. 1986
Subject: STABILIZER BAR INSULATOR BUSHING SQUAWK


MODEL AND YEAR: 1984-85-86 CAVALIER

TO: ALL CHEVROLET DEALERS


This cancels and replaces Dealer Service Bulletin 84-173 (Reissue) dated August, 1984, which should be destroyed. This Bulletin lists the part numbers for the new improved bushing.

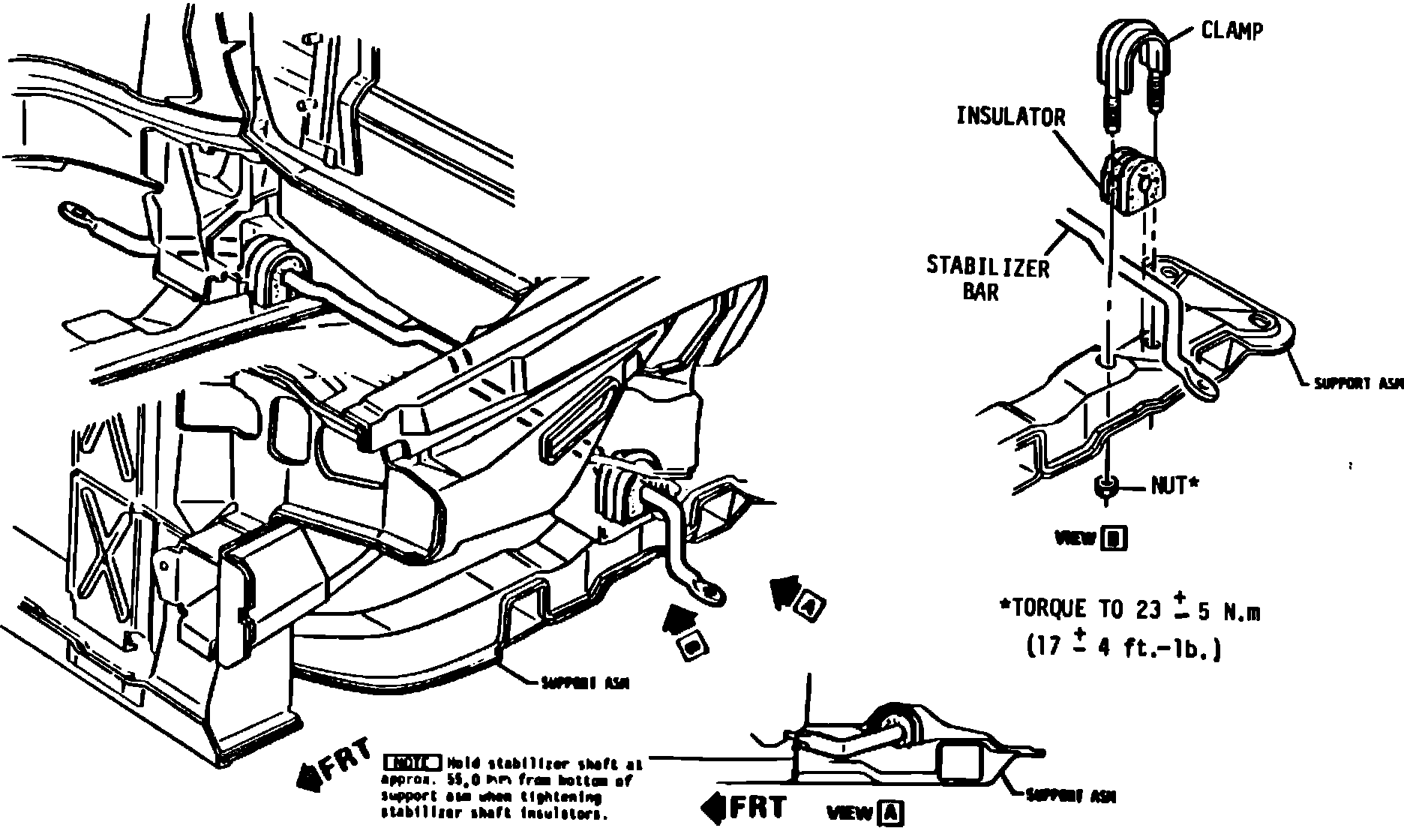

STABILIZER BAR - INSULATOR BUSHINGS:

A squawk noise from the front stabilizer bar insulator bushings may be corrected by installing new Teflon lined bushings. The new bushings are being used in production beginning approximately February 1, 1986.

Chevrolet bushing part numbers and applications are shown in below.

OLD P/N NEW P/N STABILIZER BAR DIA.

14085145 22532210 24 mm (0.945 in.)
14085147 22532212 28 mm (1.102 in.)
14085148 22532213 30 mm (1.181 in.)
