Ground Distribution
>>
Rear Lighting Circuit Hatchback
Rear Lighting Circuit Hatchback

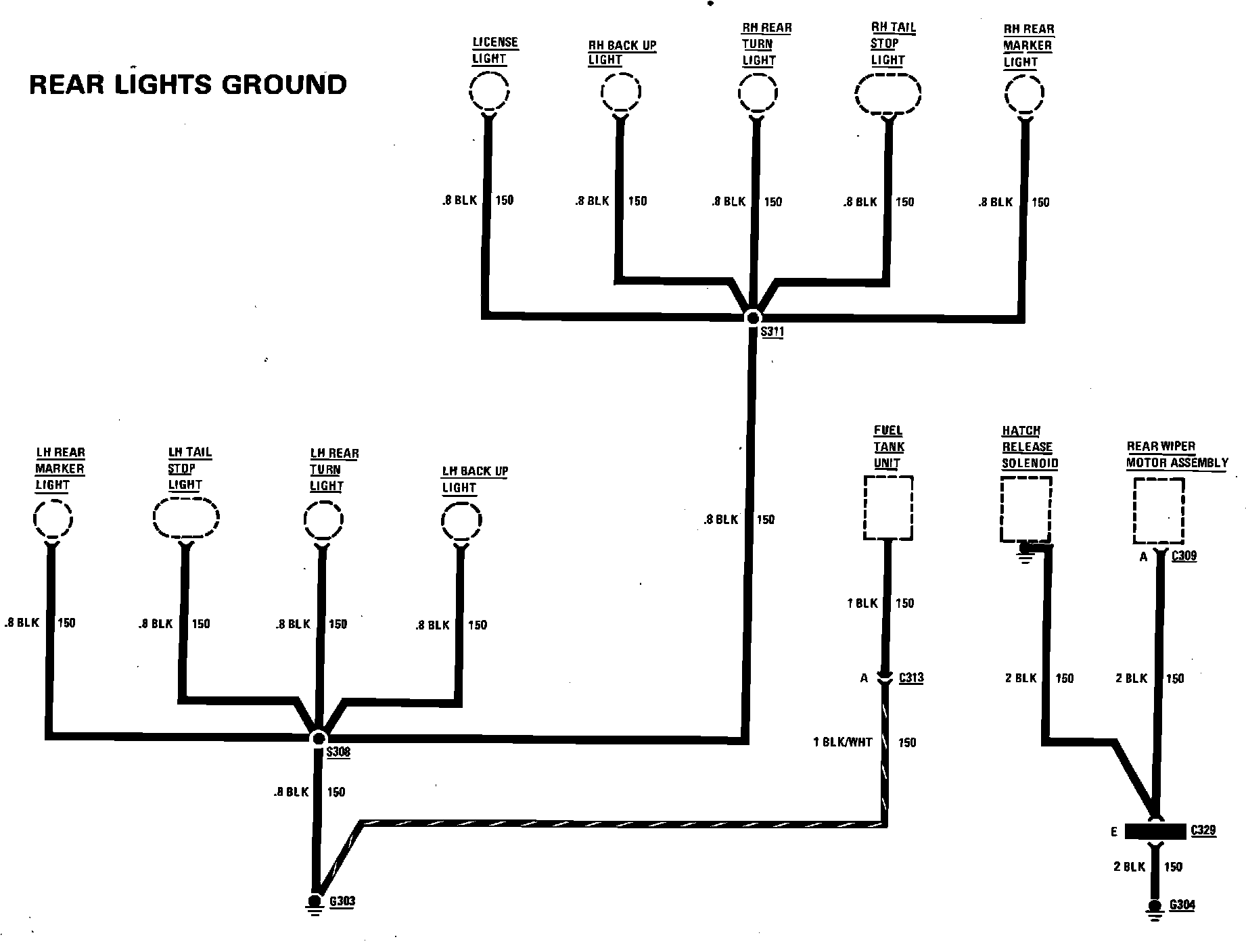

Ground Distribution (Rear Lighting Circuit):
