P/S - Reduction of Power Assist When Cold
88chevy14Number: SUPPLEMENT REISSUE 84-272-3B
Section: 3B
Date: JUNE, 1988
Subject: SUPPLEMENT TO:
SPECIAL POLICY ADJUSTMENT TEMPORARY REDUCTION OF POWER STEERING ASSIST WHEN COLD
Model and Year: 1982-84 CHEVROLET CELEBRITY, CAVALIER, CITATION WITH POWER STEERING
TO: ALL CHEVROLET DEALERS
In order to clarify the procedure concerning drive pin looseness and housing bore groove depth, Chevrolet is providing a supplement for page 10 (Step B-12) of Dealer Service Bulletin 84-272-3B Reissue.
The reverse side of this bulletin provides a replacement for page 10.
Please attach this supplement to all existing copies of the bulletin. Also be aware of this change while viewing the training video tape previously sent to your dealership.
-10- Supplement June, 1988

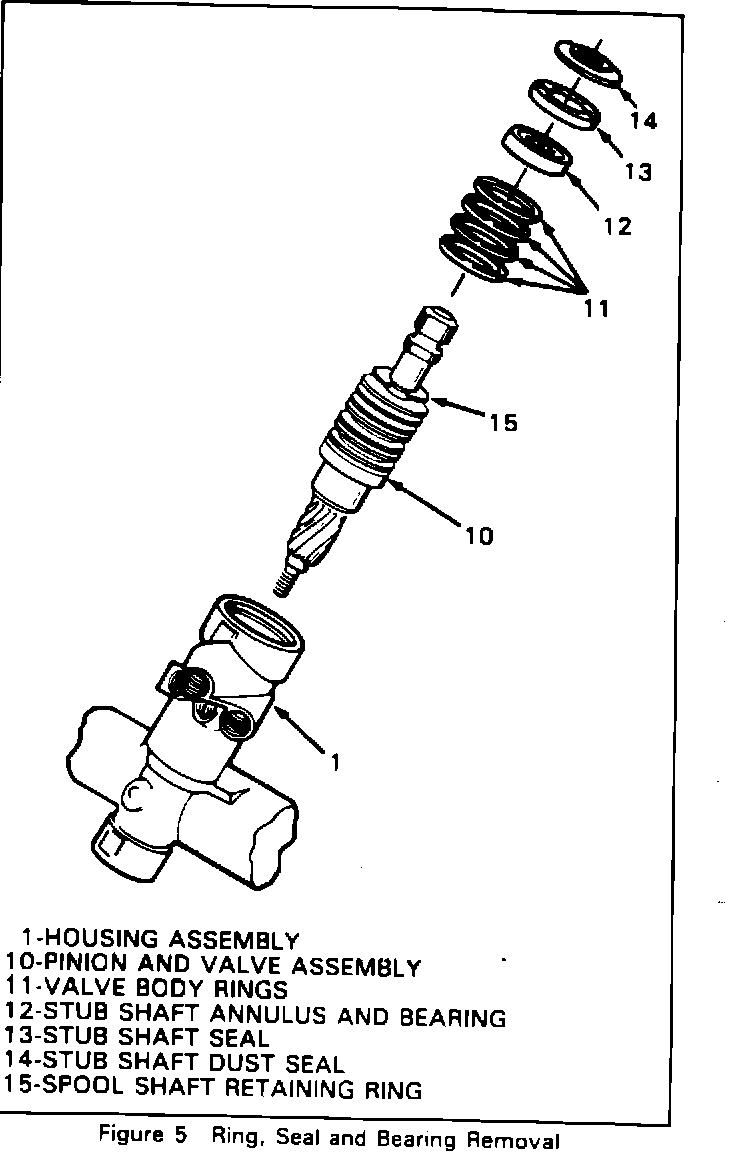

10. Remove stub shaft dust seal, stub shaft seal, stub shaft bearing annulus assembly, pinion and valve assembly, with spool shaft retaining ring, and valve body rings attached.
11. Remove valve body rings from pinion and valve assembly.
Important
Use care when removing rings from valve assembly to prevent damage to valve assembly.
12. Thoroughly clean valve assembly ring grooves.
Inspect

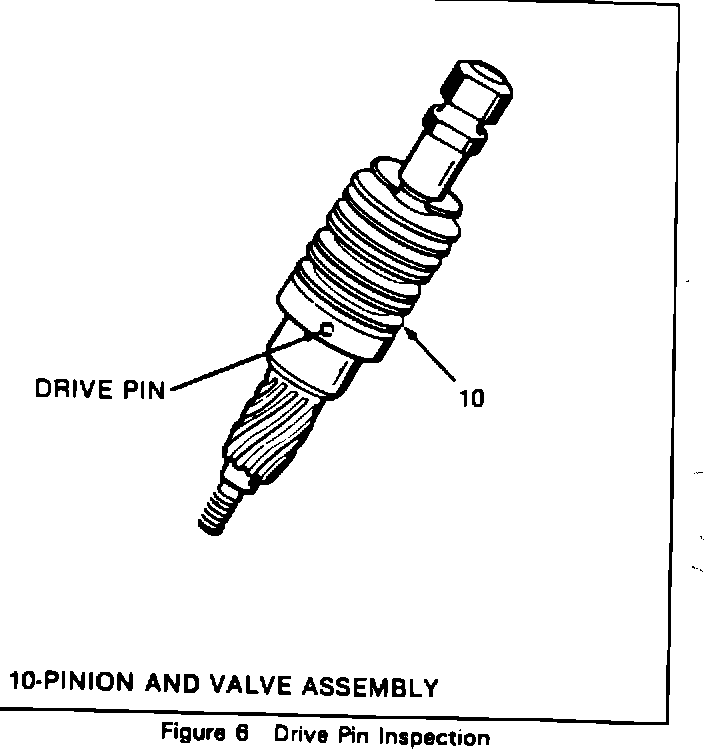

Inspect pinion and valve assembly for broken drive pin. If broken drive pin is found, replace the gear assembly.
Important
Use the same Housing and Valve Assembly regardless of depth of grooves in housing bore.
