A/T - THM 125C Model Verification

Number: 84-202

Section: 7A (VIIc)

Date: Oct., 1984
Subject: EXTENDED PRODUCTION RUN OF 1984 CAVALIERS


Model and Year: 1984 THM 125C

TO: ALL CHEVROLET DEALERS


Production of the 1984 model year Cavalier has been extended into the 1985 model year.

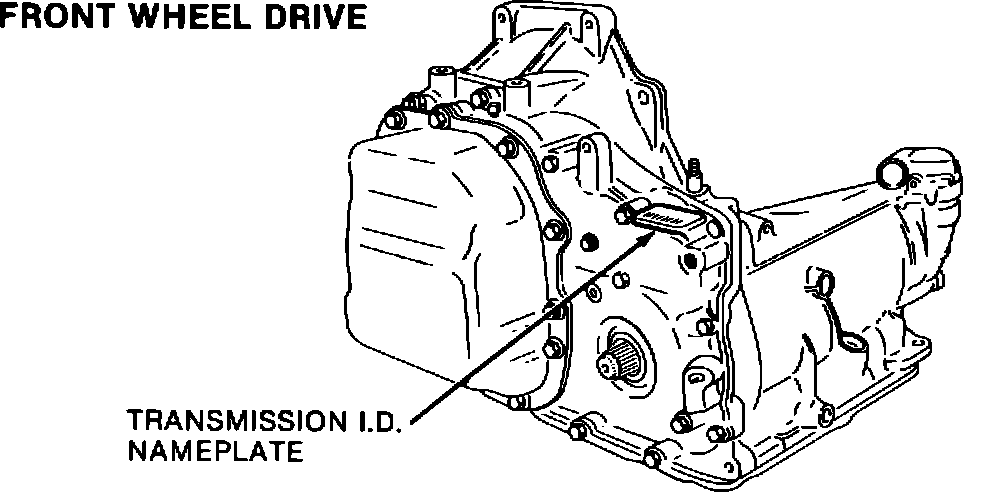

THM 125/125-C TRANSMISSION I.D. NAMEPLATE LOCATION:

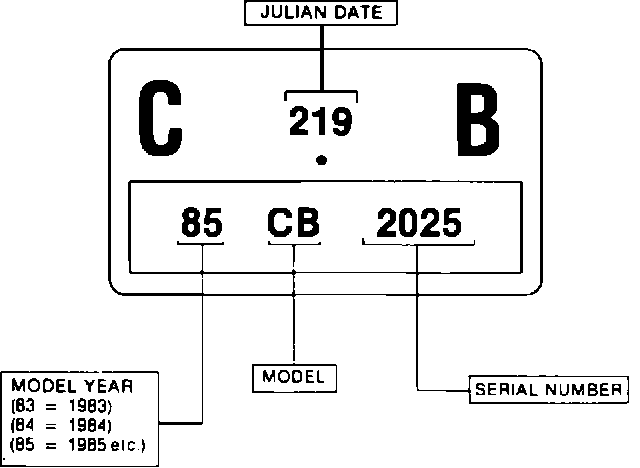

THM 125/125-C TRANSMISSION I.D. NAMEPLATE YPSILANTI, MICHIGAN:

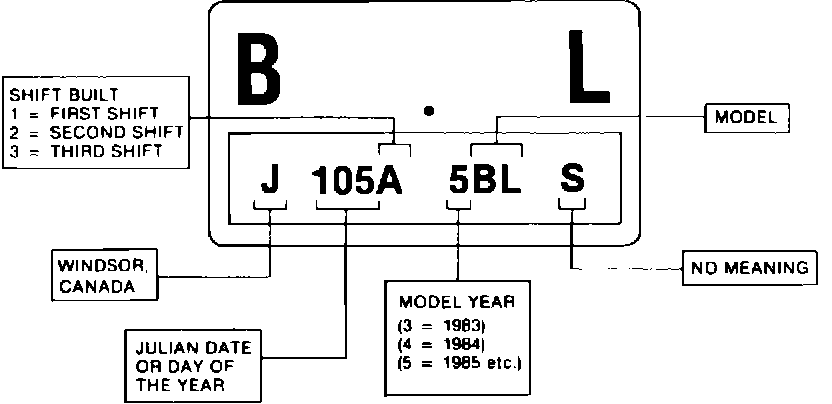

THM 125/125-C TRANSMISSION I.D. NAMEPLATE WINDSOR, CANADA:




This vehicle will be built with the 1985 model THM 125C transmission.. When servicing any 125C transmission used in this vehicle verify the model year by looking at the transmission nameplate located on top of the transmission by the manual shaft (see identifier illustrations).
NOTICE: If the transmission being serviced is a 1984 model, you must refer to the 1984 parts list, and if it is a 1985 model, you must refer to the 1985 parts list in order to obtain the correct parts.
