Electrical- Diagnostic Chart

Number: 84-6

Section: 6D (VI)

Date: Oct., 1983
Subject: T/A COOLANT FAN, IDLE SPEED CONTROL AND SPARK CONTROL ELECTRICAL DIAGNOSIS


Model and Year: 1983-84 CAMARO Z28

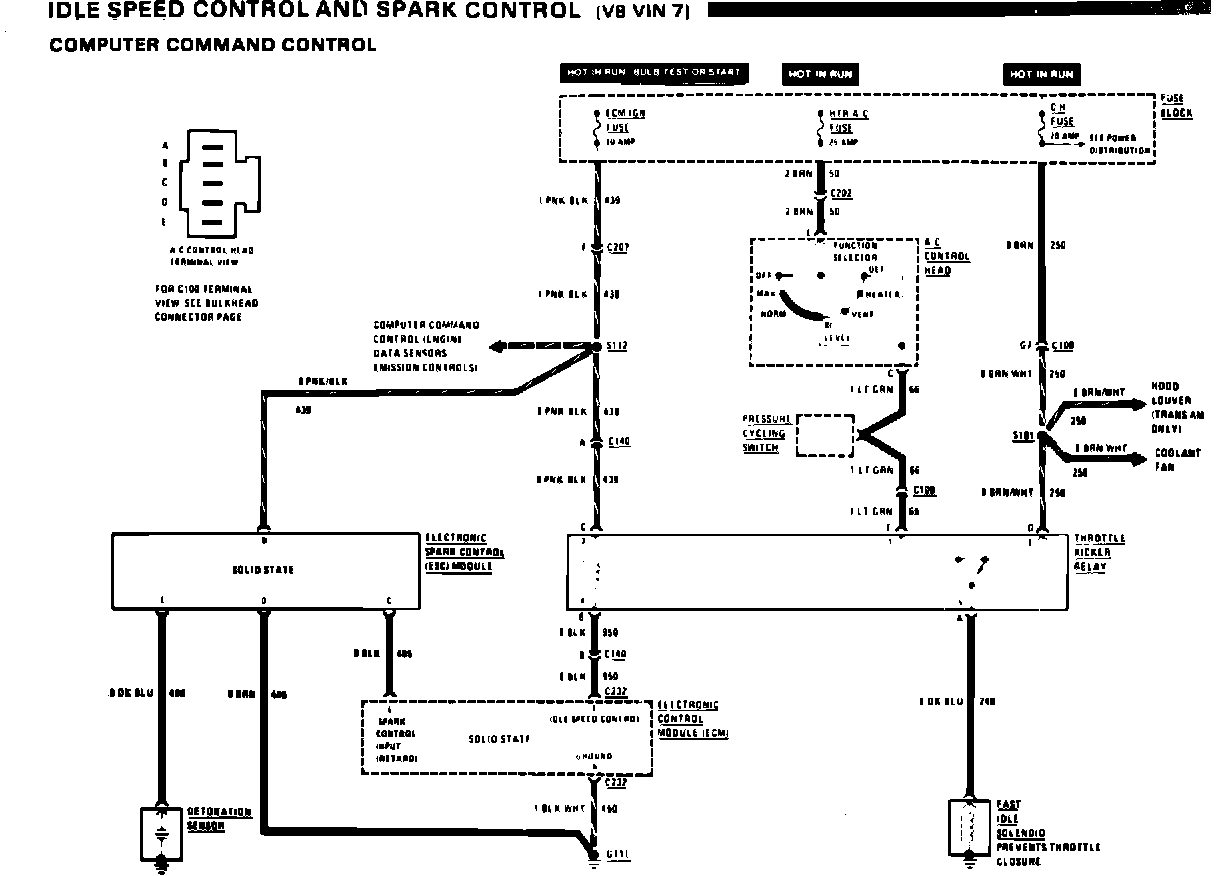

IDLE SPEED CONTROL AND SPARK CONTROL:

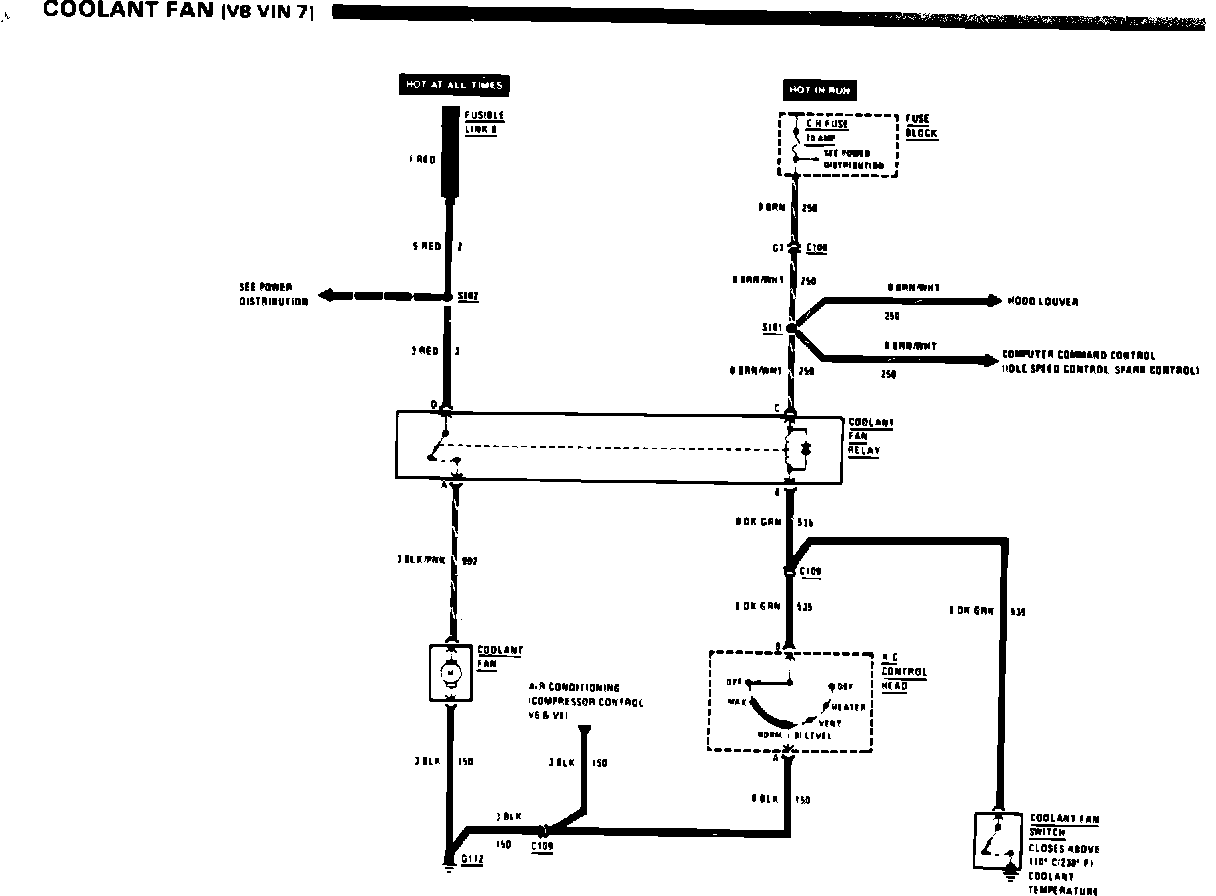

COOLANT FAN:

TO: ALL CHEVROLET DEALERS


Attached are Electrical Diagnosis Charts for the 1983 and 1984 Camaro Z28 equipped with a 305 cubic inch high output (L69) engine.
These diagnosis sheets pertain to the electric cooling fan, idle speed and spark control which are unique to the high output engine.

These diagnosis sheets should be filed in your Rear Wheel Drive Service Manual, Section 8A.
