Headlamp Switch: Service and Repair

Fig. 3 Headlamp switch knob removal:

CAMARO
1982---84 Exc. 1984 Berlinetta

1. Disconnect battery ground cable.
2. Remove left and right lower instrument panel trim plates.
3. Pull light switch to On position, depress release button on switch frame, then remove knob and stem from switch, Fig. 3.
4. Remove switch bezel and retaining nut.
5. Depress switch retaining tabs, if equipped, pull switch from instrument cluster and disconnect electrical connector.
6. Reverse procedure to install.

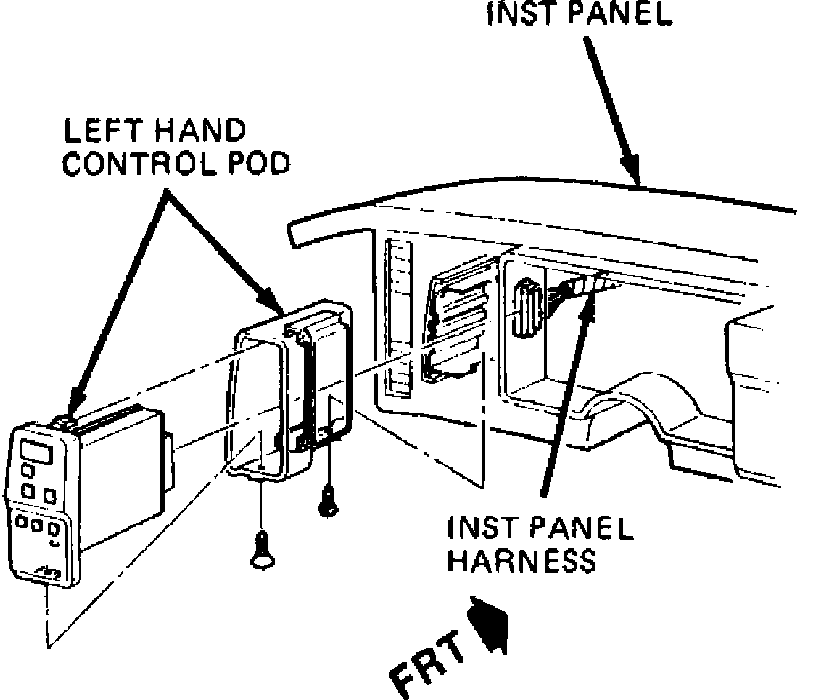

Fig. 4 Left control pod removal. 1984---86 Berlinetta:

1984---86 Berlinetta

1. Disconnect battery ground cable.
2. Remove instrument panel close-out panel and lower steering column cover.
3. Remove bottom front screw securing left control pod, then release pod retainer.
4. Disconnect left control pod electrical connector below instrument panel, Fig. 4.
5. Remove pod housing and screw securing control assembly to track.
6. Slide control assembly from track.
7. Reverse procedure to install.
