Emission Controls & Engine Data Sensors

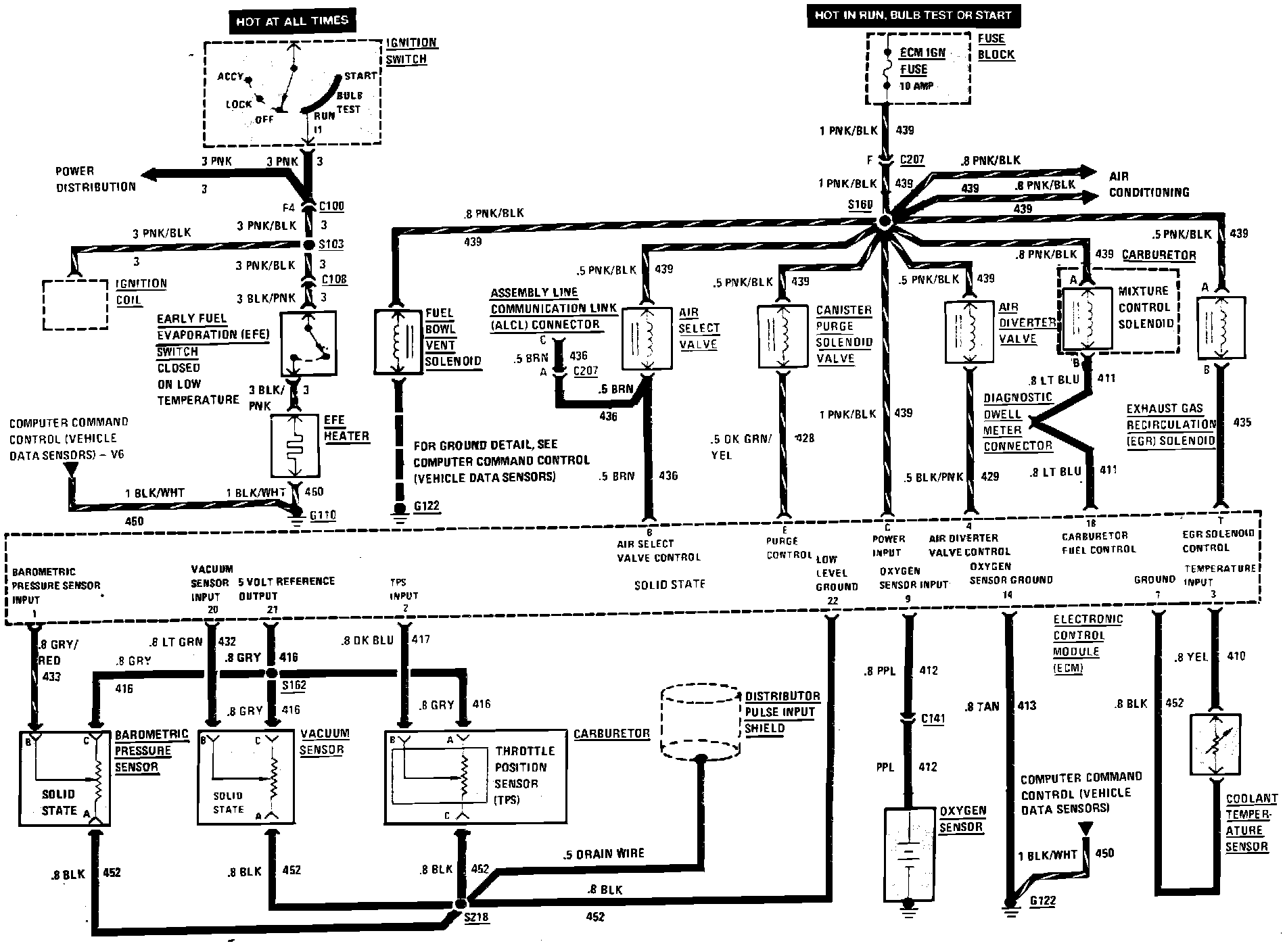

Computer Command Control (Engine Data Sensors & Emission Controls):
