Claim Information

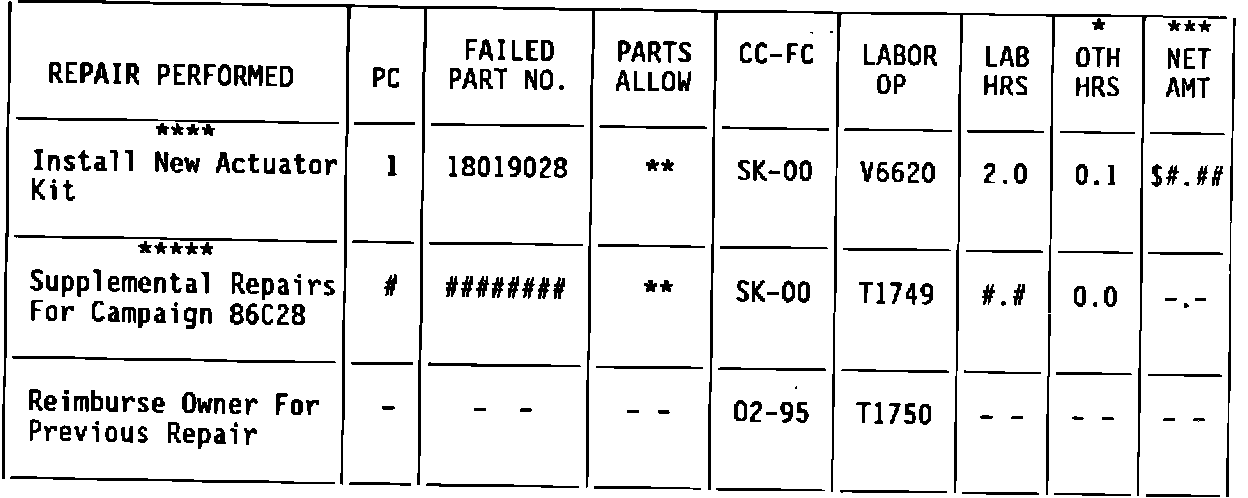

Submit a Product Campaign Claim with the information indicated.


* Campaign Administrative Allowance.

** The "Parts Allowance" should be the sum total of the current GMSPO Dealer Net price plus 30% of all parts required for the repair. For V6620, this amount should include the parts allowance for any replaced banjo washers when applicable.

*** The $#.## identified in the "Net Amount" column represents the cost plus 30% for one (1) pint of brake fluid used in conjunction with labor operations.

**** Labor hours required to replace tapered pads, install actuator levers, and adjust park brake cables are included in the standard campaign labor hours (V6620). No addititional time is needed as procedures to perform these repairs are part of the campaign actuator installation procedure.


The Labor Hours required for supplemental repairs needed to complete this campaign are listed below. If multiple repairs were required, add appropriate times together. Failed Part Number information can be selected from the "Parts Information" section of this bulletin.

Labor
Description Hours

Replace Front Park 0.7
Brake Cable

Replace Both Rear 0.2
Park Brake Cables

Replace All Park 0.9
Brake Cables

Replace Park Brake Handle 0.5

Remove And Reinstall 0.1
Wheel Lock Nuts

Replace Tapered Brake (The labor hours to perform this
Pads repair are included in V6620.
Use T1749 only to claim the
applicable parts allowance.)

Replace Actuator Levers (The labor hours to perform this
repair are included in V6620.
Use T1749 only to claim the
applicable parts allowance.)


Dealers will automatically receive the correct labor and material allowance for labor operation V6620.

Refer to the Chevrolet Claims Processing Manual for details on Product Campaign Claim Submission.
