Camaro L4-151 2.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Check Engine Light, Ignition System & Tachometer
Check Engine Light, Ignition System & Tachometer

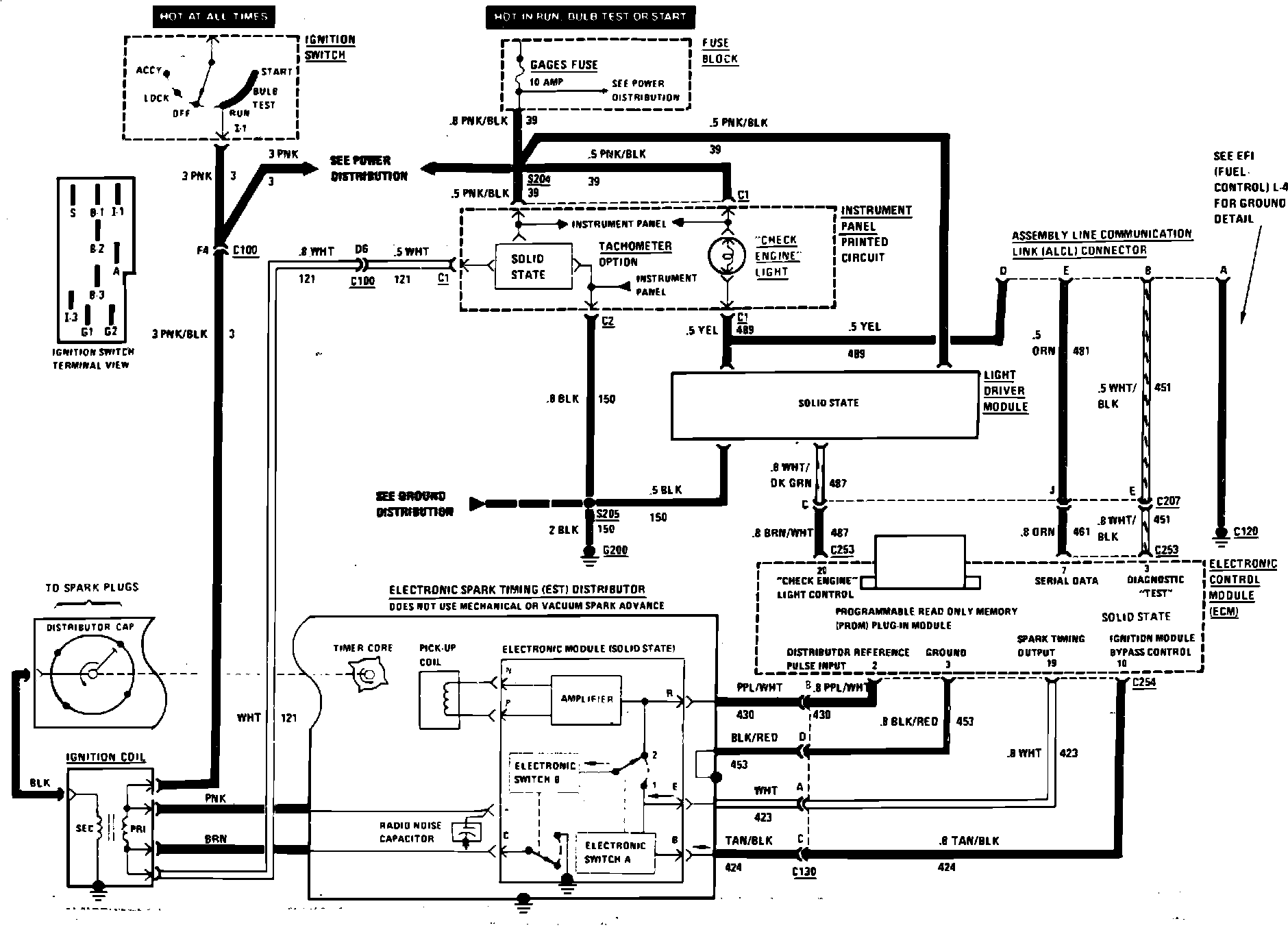

Electronic Fuel Injection (Check Engine Light, Ignition System & Tachometer):
