Home
>>
Chevrolet
>>
1984
>>
Camaro L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

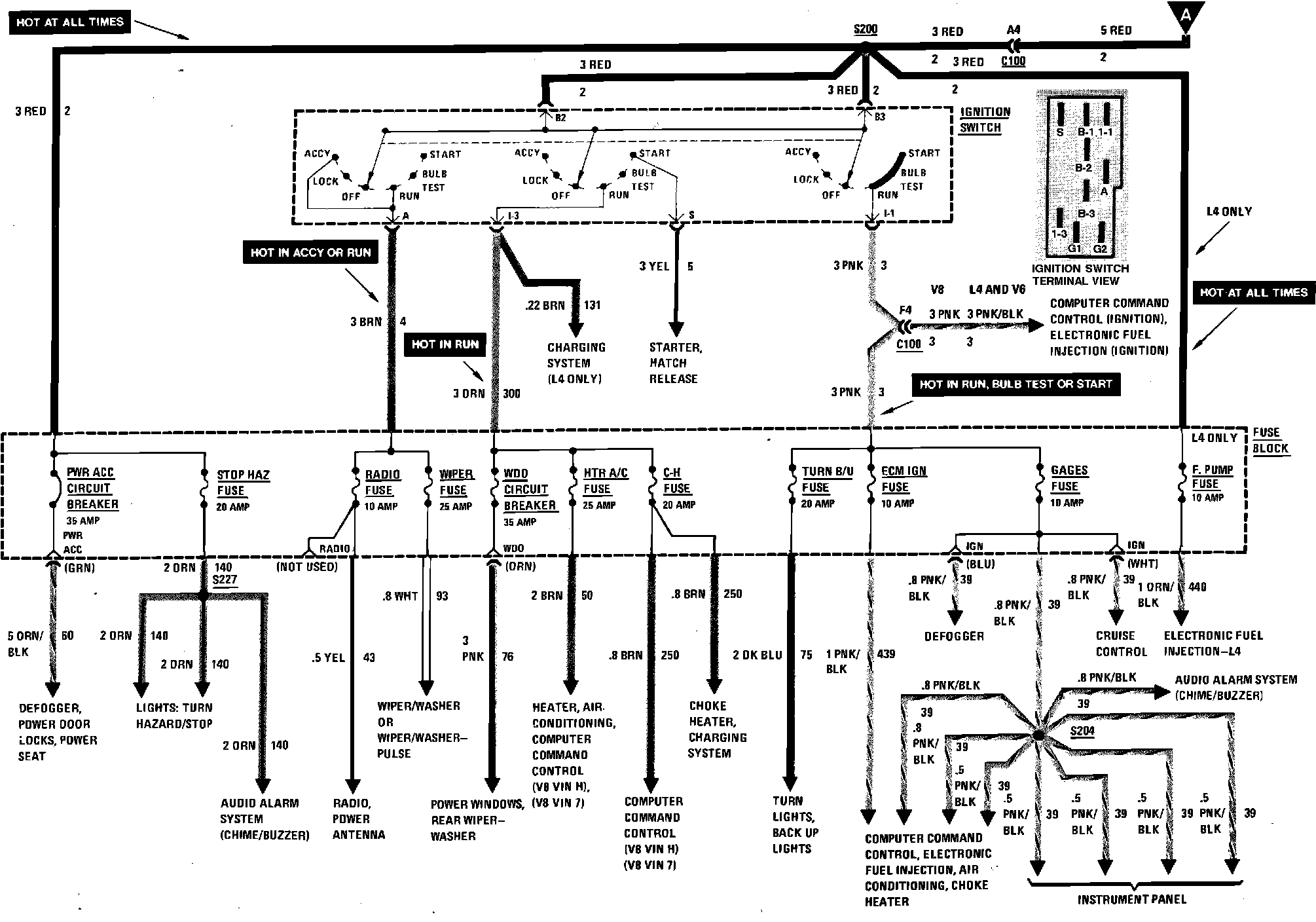

Power Distribution Wiring Circuit
>>
Part 2 of 2 Camaro Sport Coupe
Part 2 of 2 Camaro Sport Coupe
Power Distribution Wiring Circuit Sport Coupe (All):
