Rear Lighting Circuit 1984 Camaro Berlinetta
Rear Lighting Circuit 1984 Camaro Berlinetta

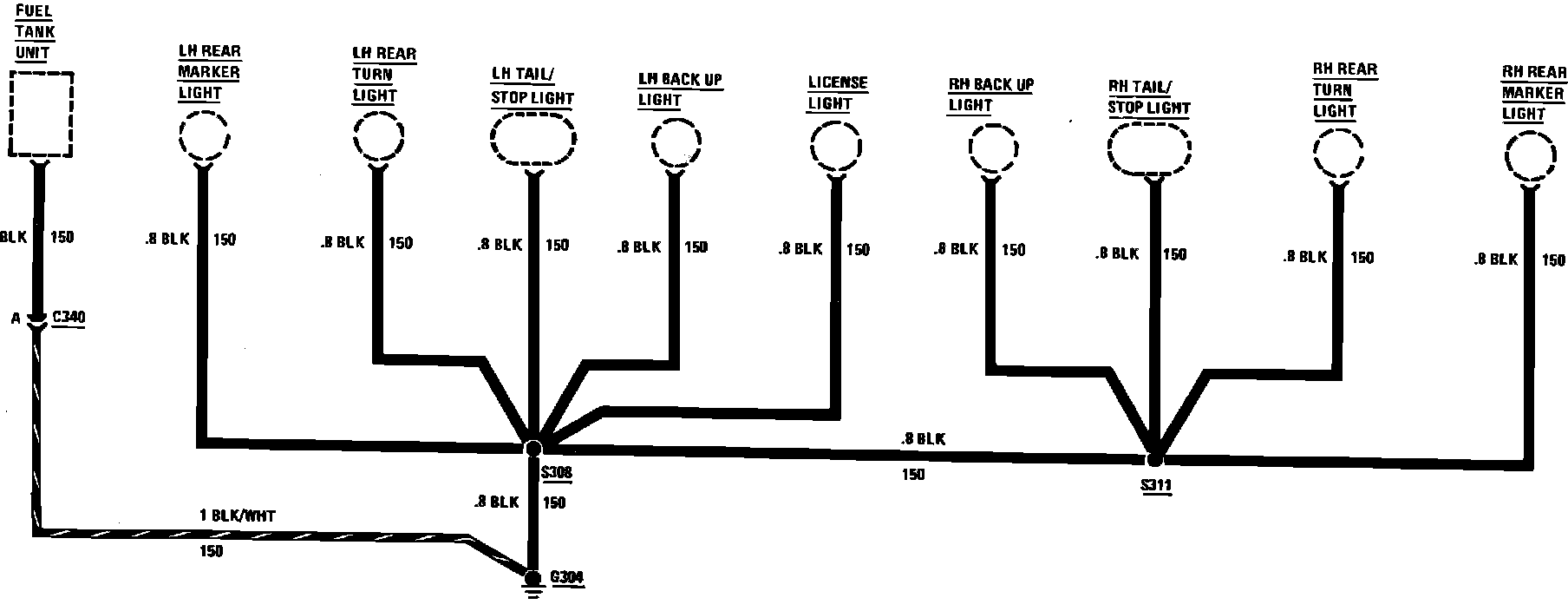

Ground Distribution (Rear Lighting Circuit) Berlinetta:
