Front Lighting Circuit (Sport Coupe)
Front Lighting Circuit (Sport Coupe)

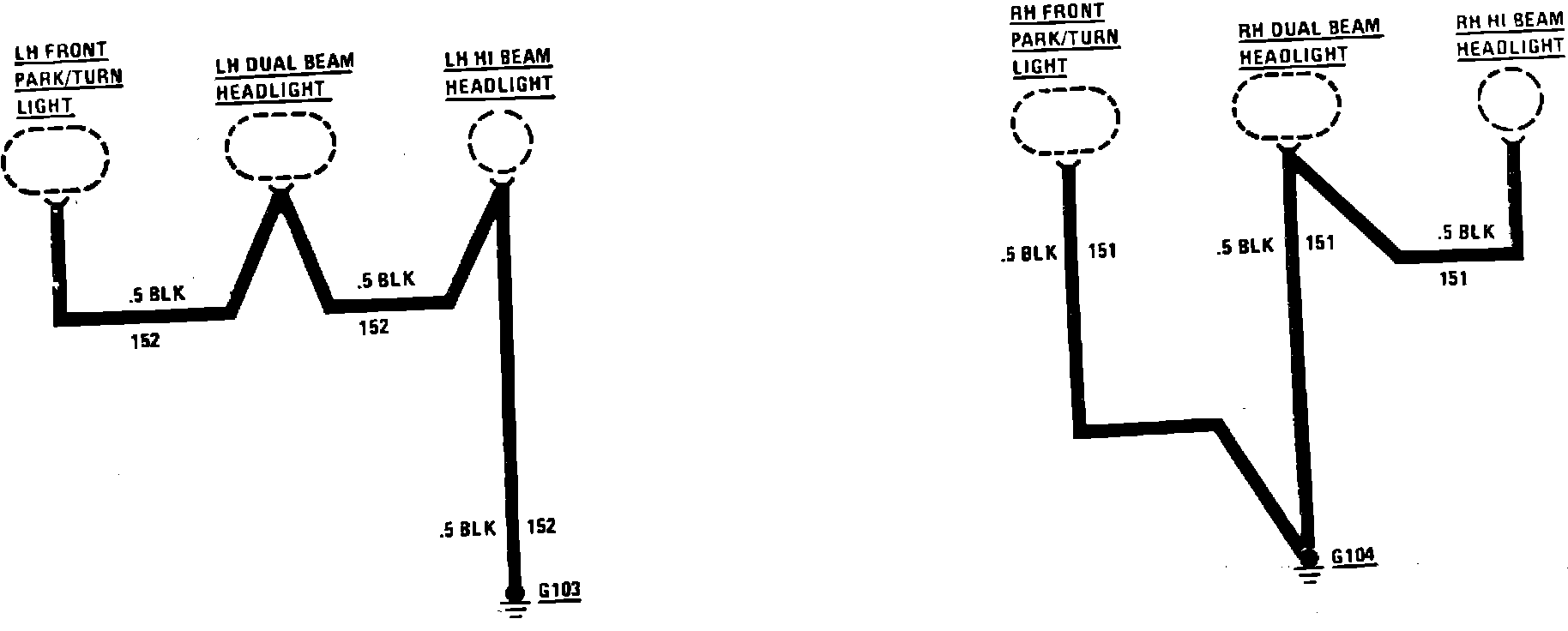

Ground Distribution (Front Lighting Circuit):
