Engine Mount: Service and Repair

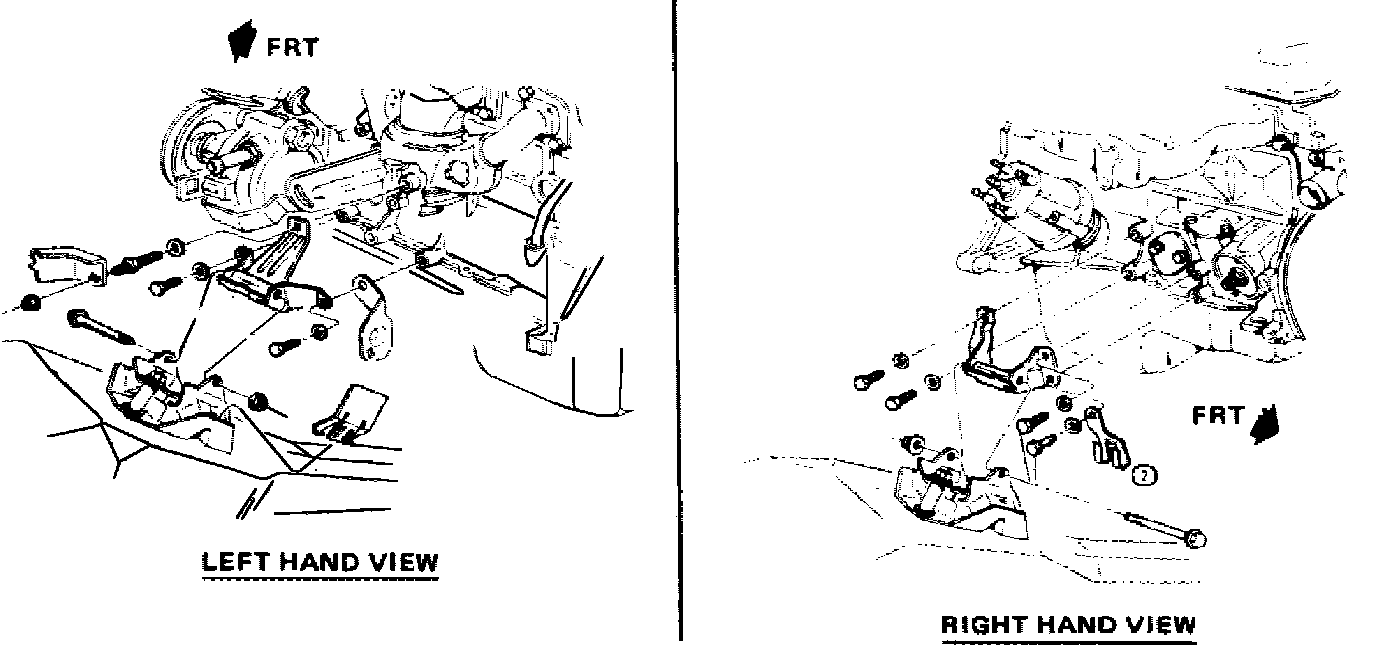

Fig. 1 Engine mounts:

1. Disconnect battery ground cable.
2. Raise and support front of vehicle.
3. Remove mount through bolts on left and righthand side, Fig. 1.
4. Raise front of engine and remove mount to engine attaching bolts, then remove mounts.
5. Reverse procedure to install.
