Home
>>
Chevrolet
>>
1984
>>
Camaro L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
With Pulse
>>
Camaro Berlinetta
Camaro Berlinetta

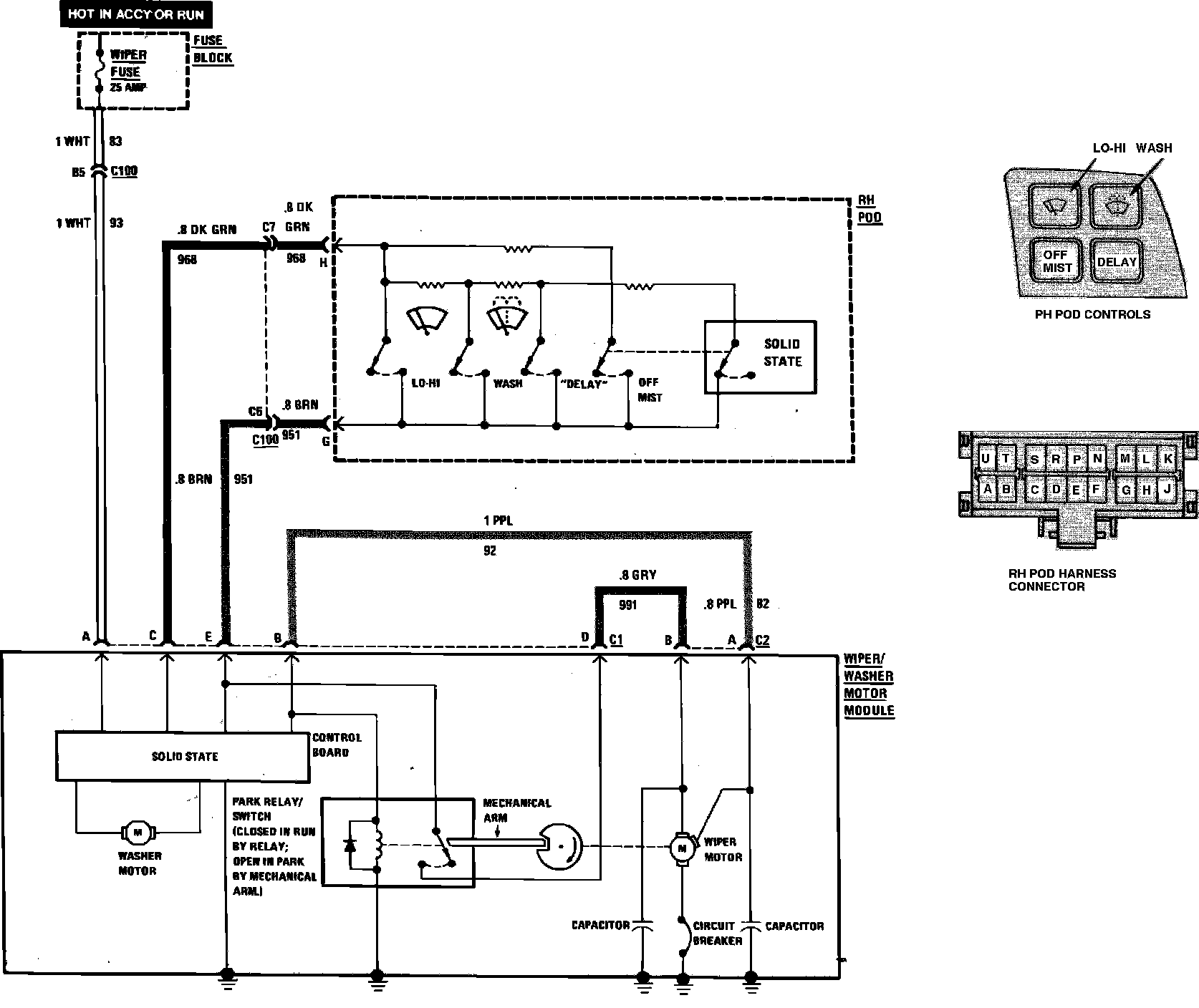

Windshield Wiper/Washer Wiring Circuit (With Pulse) Berlinetta:
