Instrument Panel Circuits (Sport Coupe)
Instrument Panel Circuits (Sport Coupe)

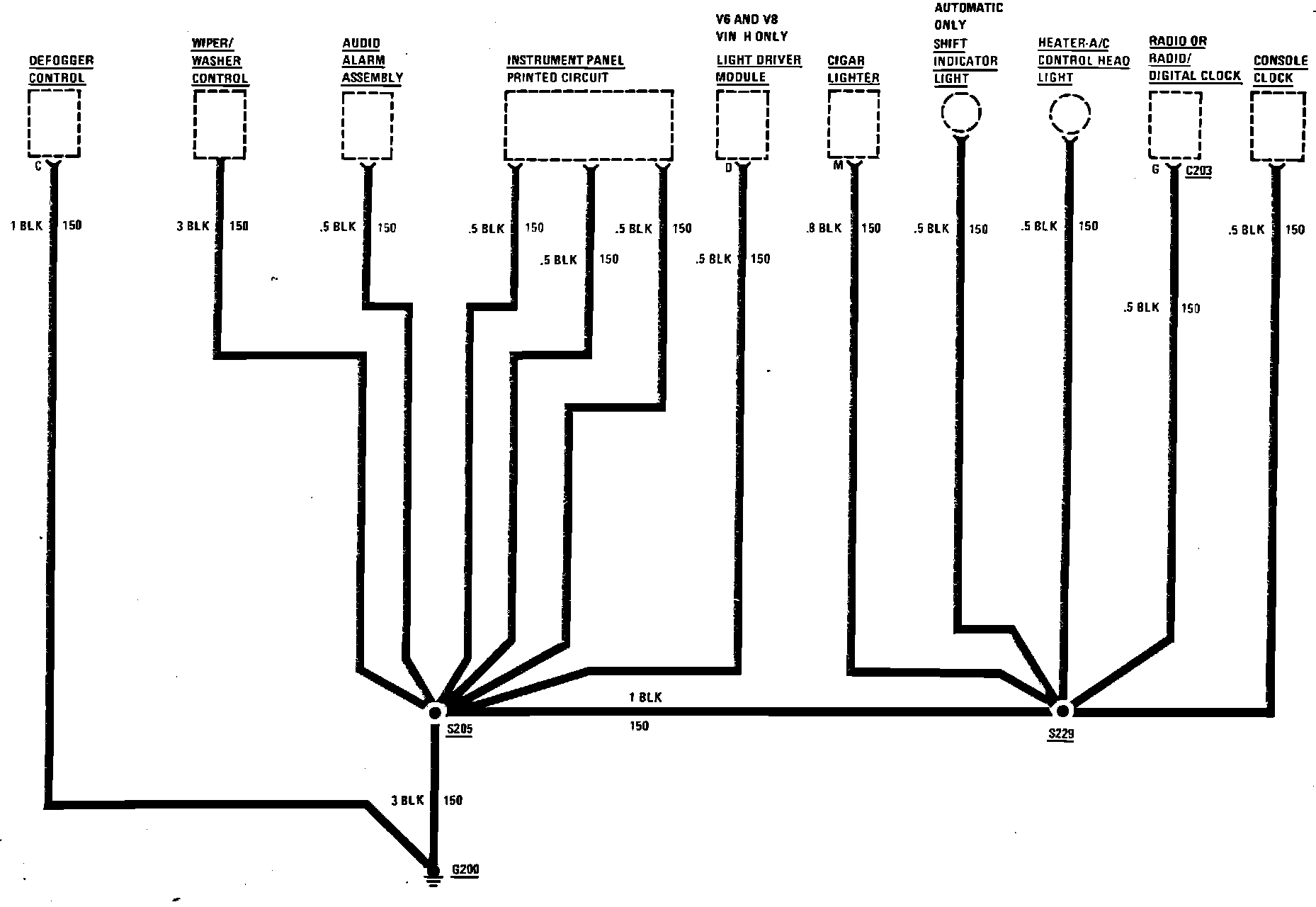

Ground Distribution (Instrument Panel Circuits) Sport Coupe:
