Home
>>
Chevrolet
>>
1984
>>
Camaro L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Speaker System
>>
With Stereo Radio
With Stereo Radio

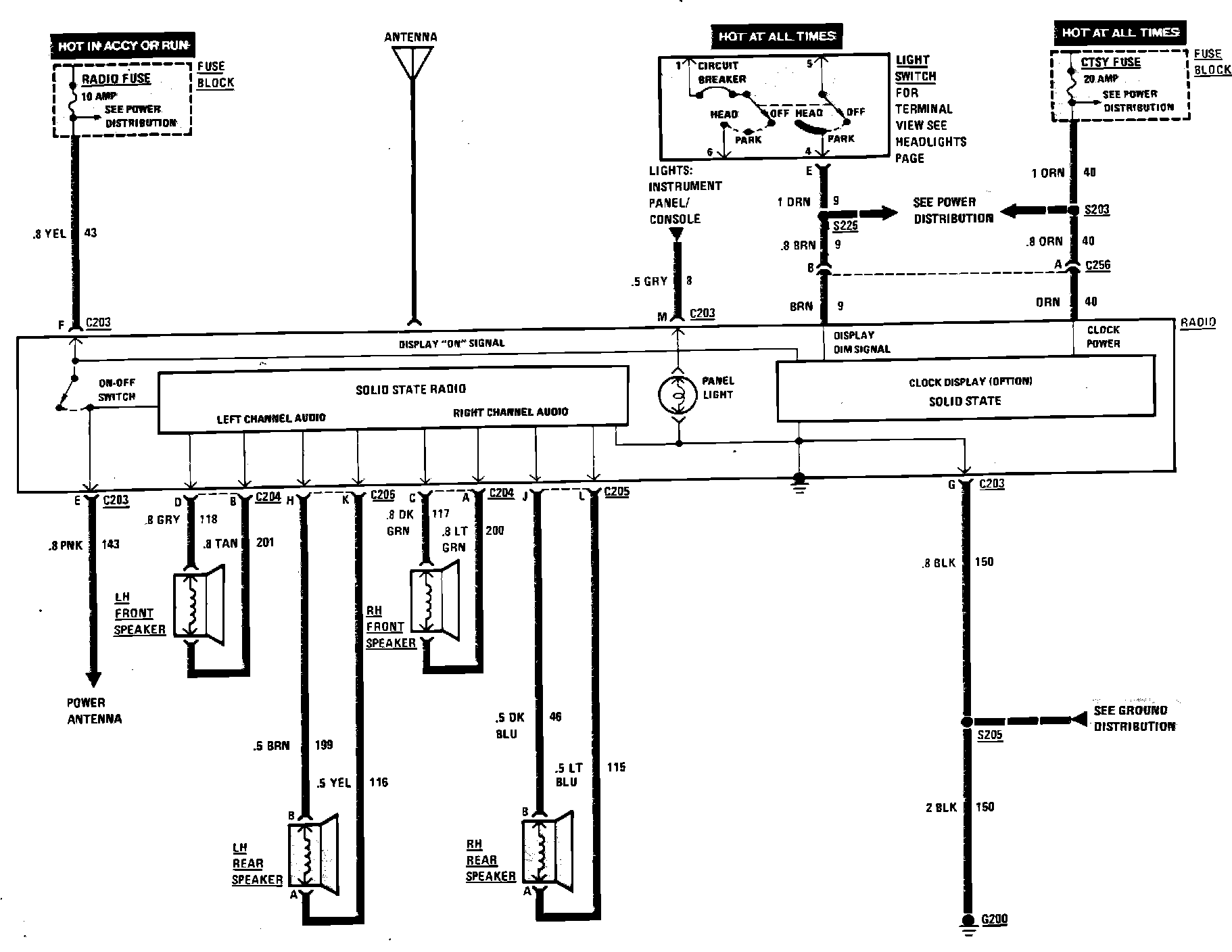

Radio (Stereo) & Speaker Wiring Circuit:
