Home >> Chevrolet >> 1984 >> Camaro L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals >> Berlinetta

Berlinetta

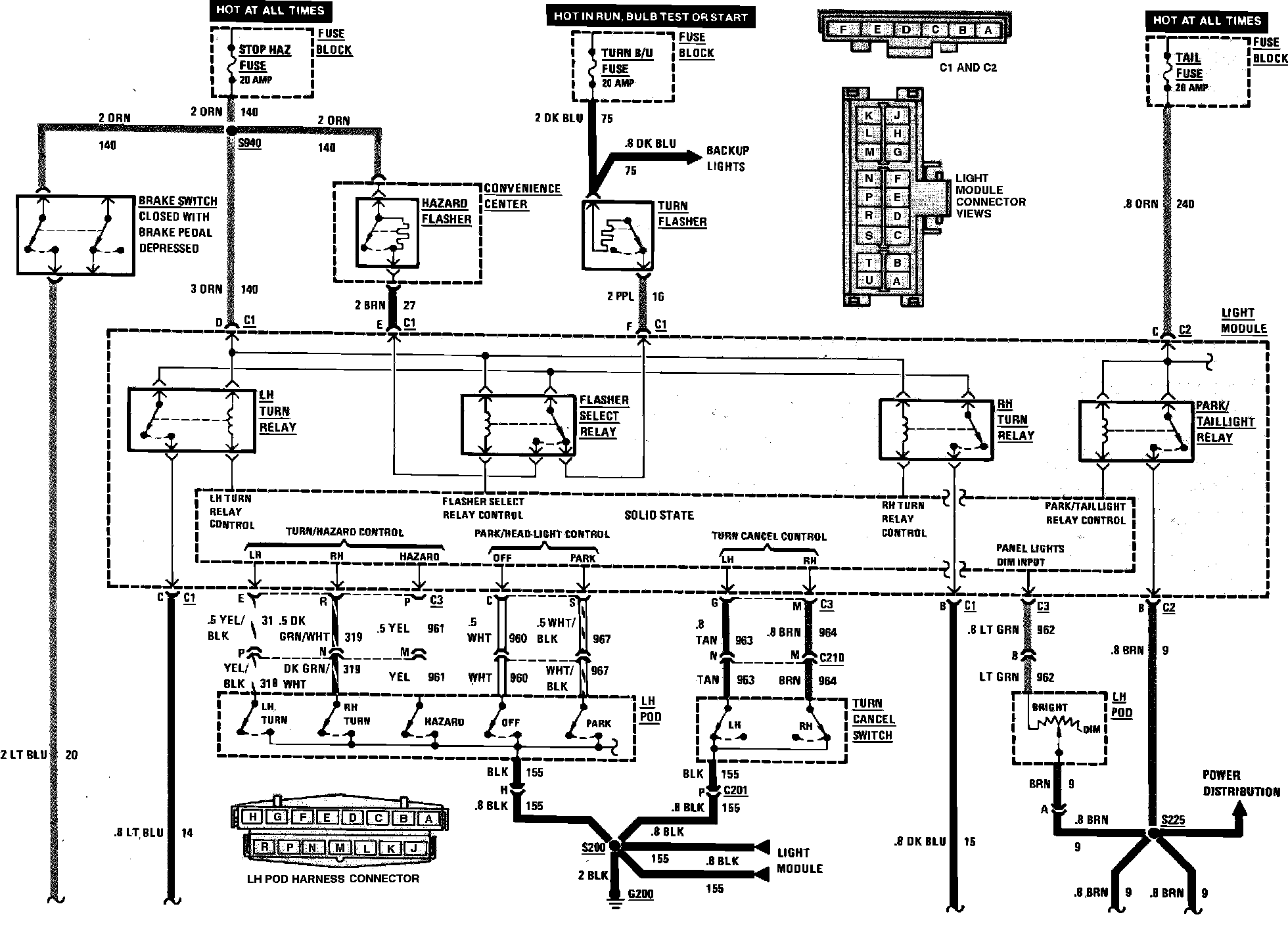

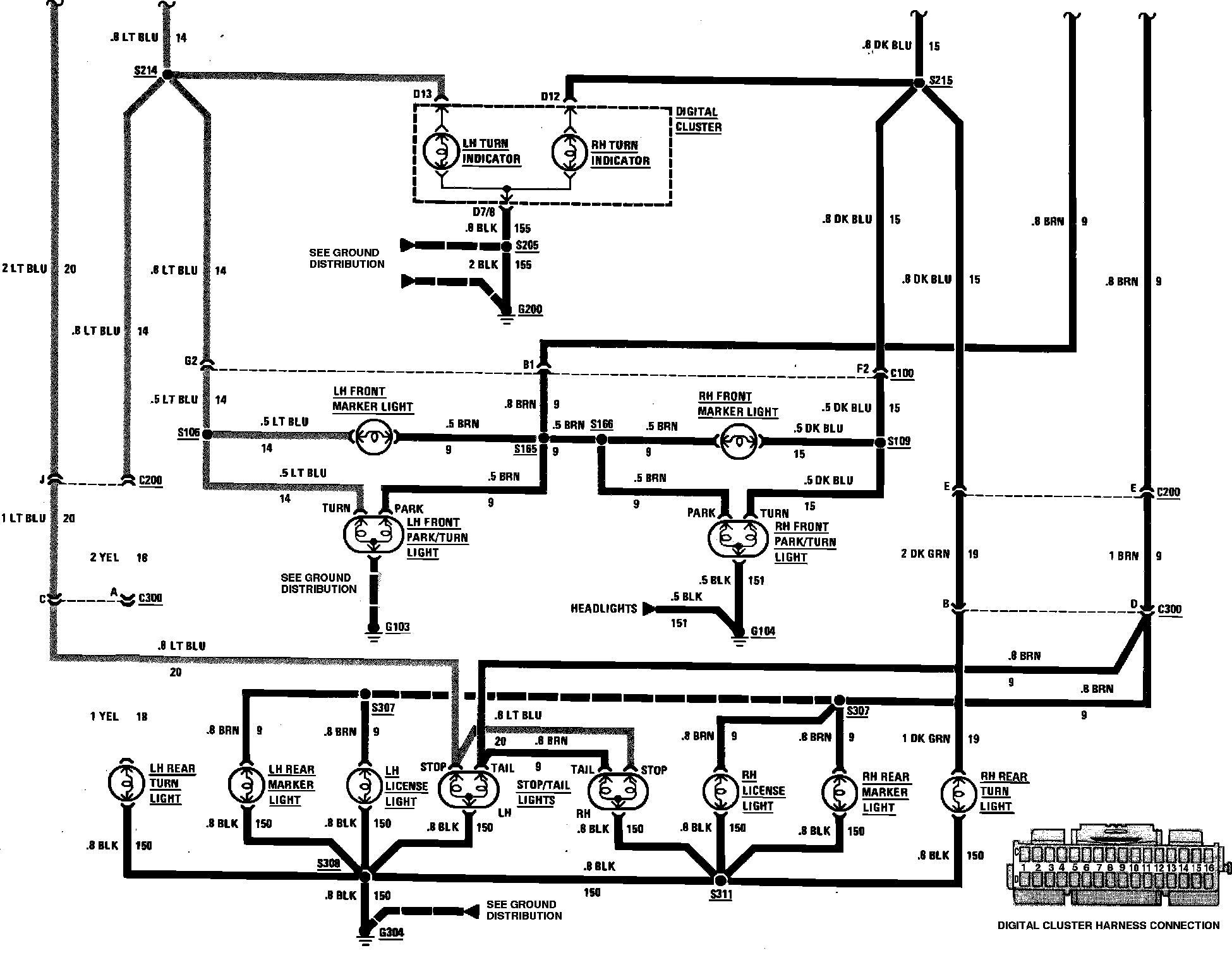

Front & Rear Marker, Front & Rear Park, Hazard, License, Stop, Tail & Turn Signal Lights (Berlinetta):



Front & Rear Marker, Front & Rear Park, Hazard, License, Stop, Tail & Turn Signal Lights (Berlinetta):
