Camaro Berlinetta
Camaro Berlinetta

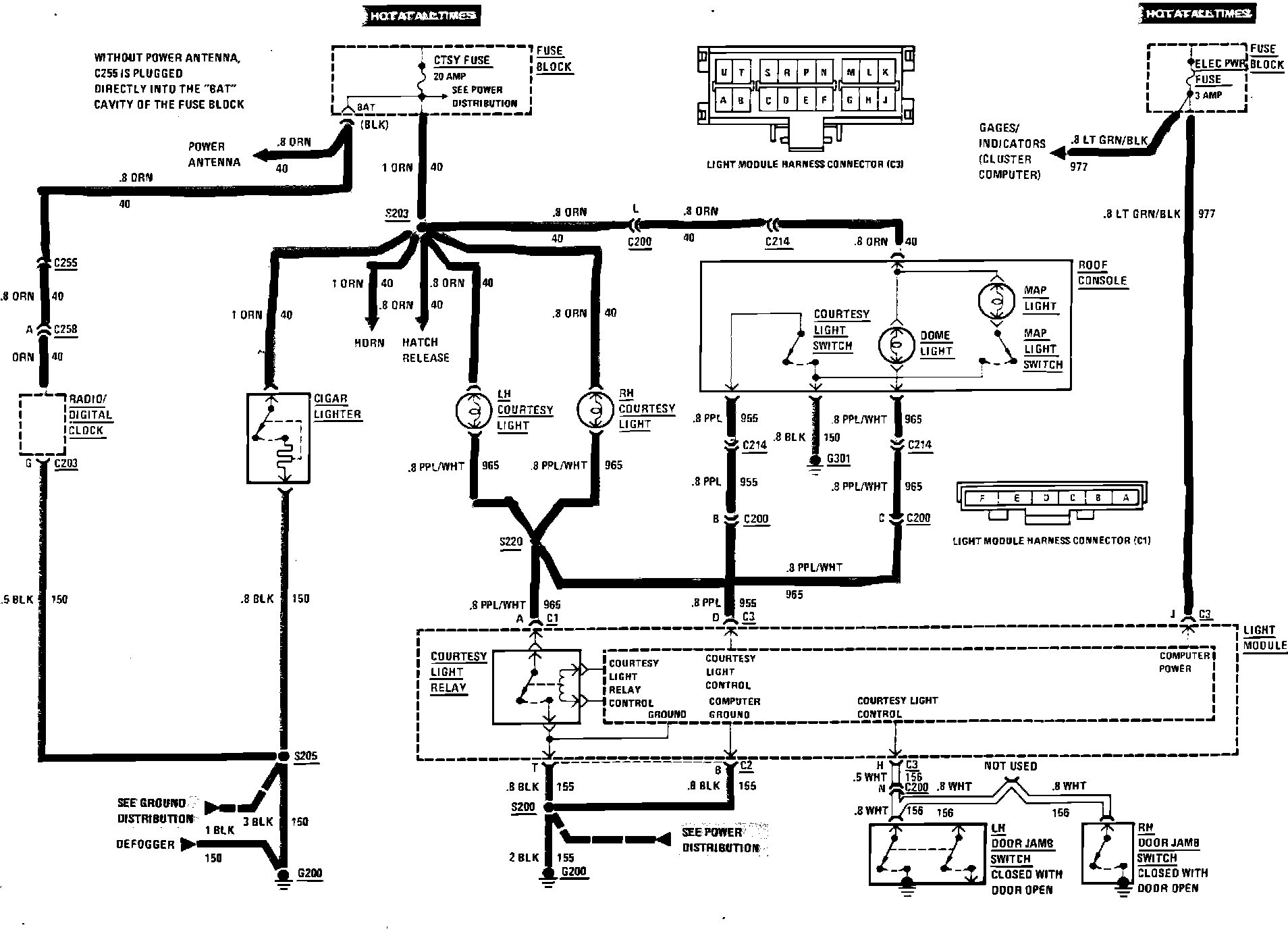

Cigar Lighter, Clock & Interior Lighting Wiring Circuit. Berlinetta:
