Cadillac
>>
2013
>>
XTS FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Rain Sensor
Rain Sensor

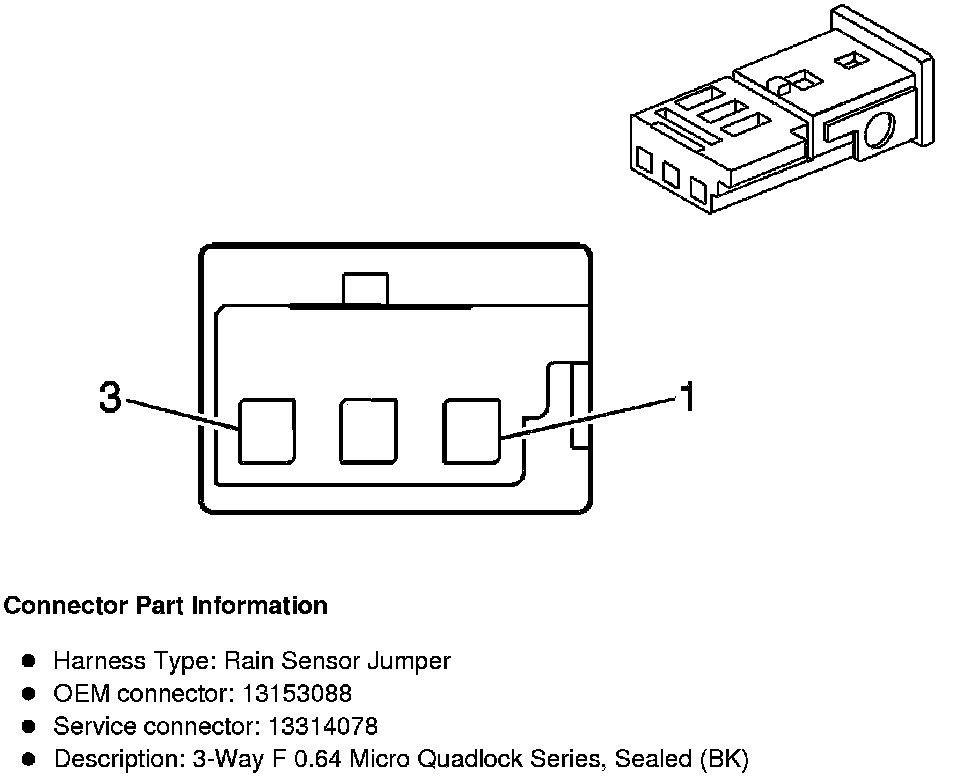

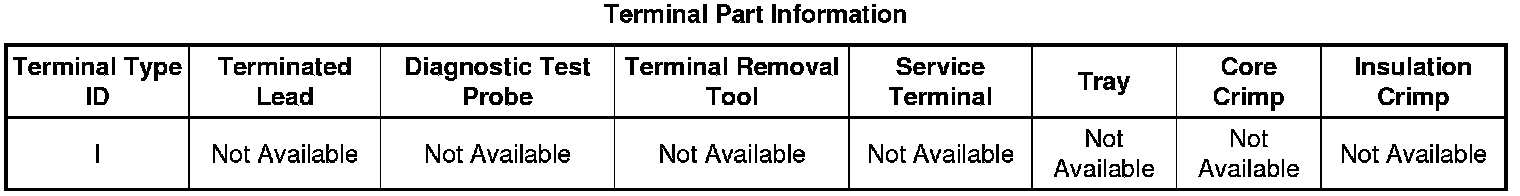

Component Connector End Views

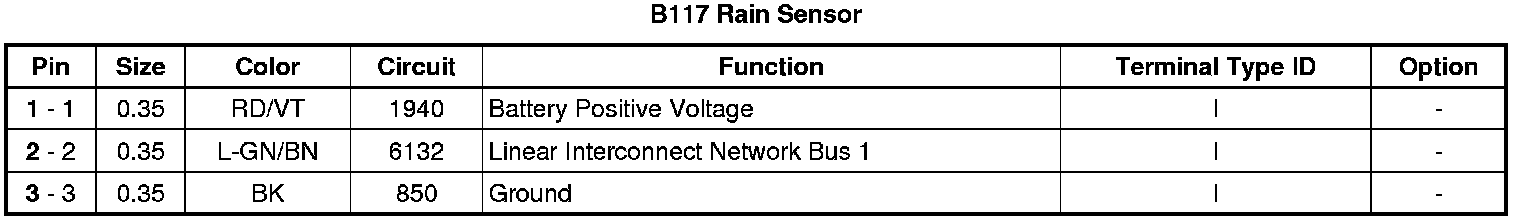

B117
Rain Sensor
