Speaker - Center Instrument Panel
Speaker - Center Instrument Panel
Component Connector End Views

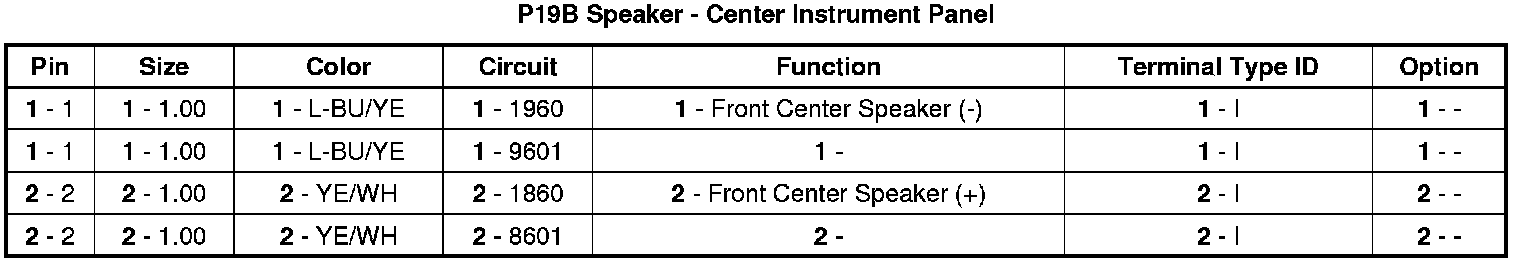

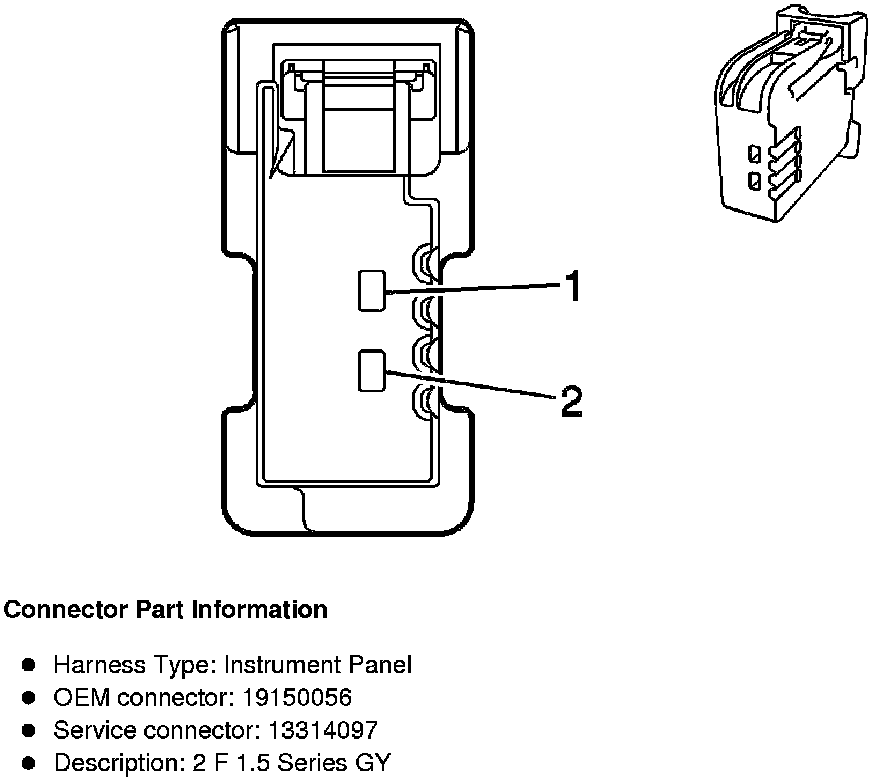

P19B Speaker - Center Instrument Panel
