Cadillac
>>
2013
>>
XTS FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Side Object Sensor Module - Right (CZ2)
Side Object Sensor Module - Right (CZ2)
Component Connector End Views

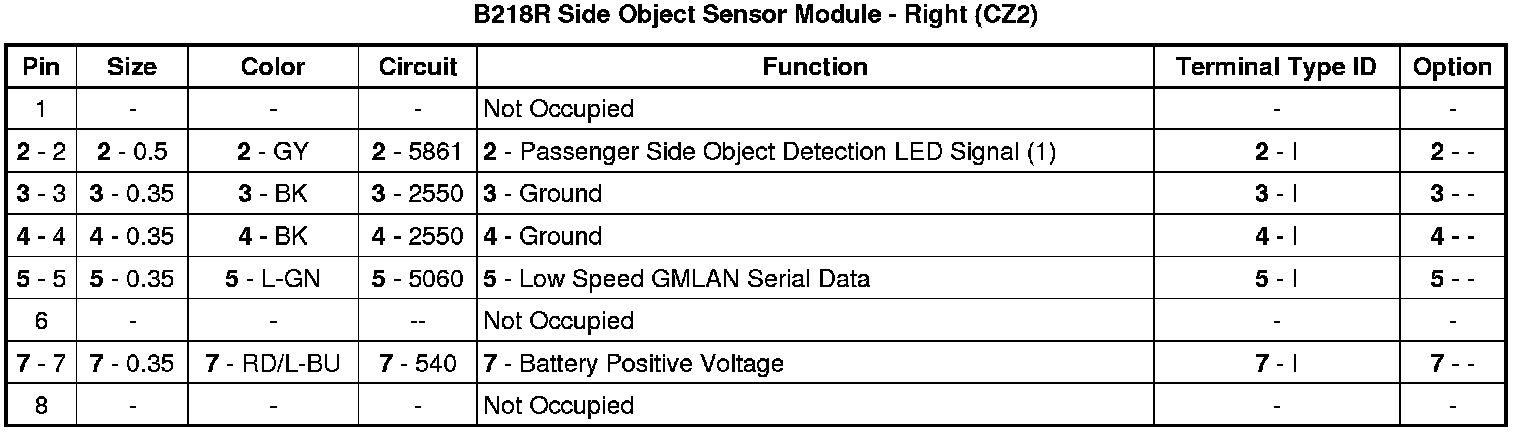

B218R Side Object Sensor Module - Right (CZ2)
