XTS FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor Clutch
Compressor Clutch

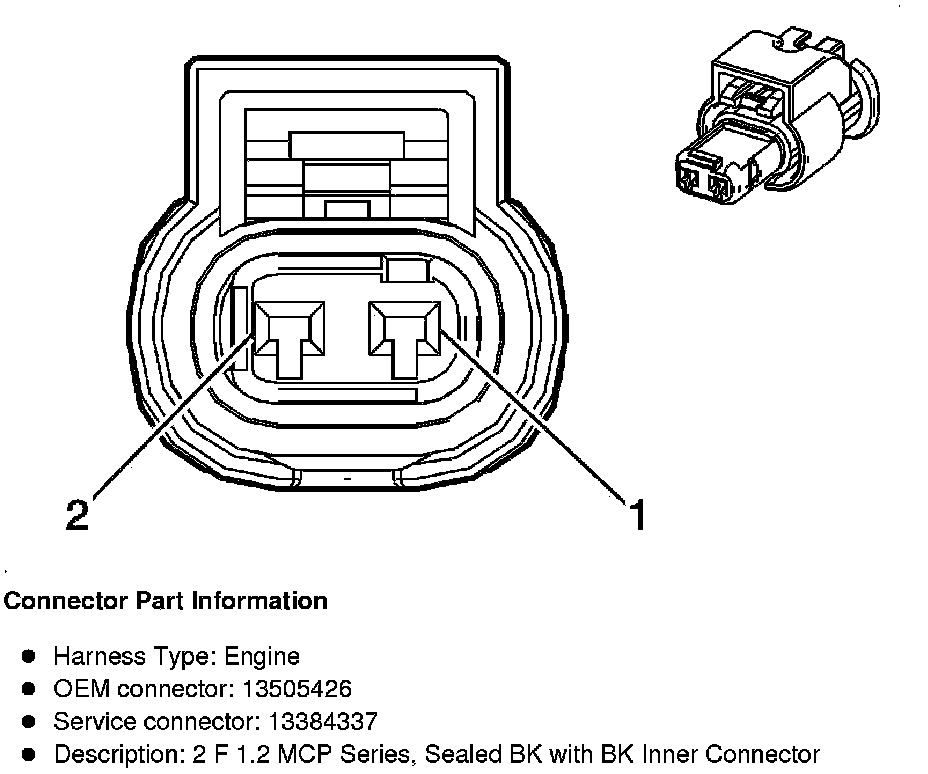

Component Connector End Views

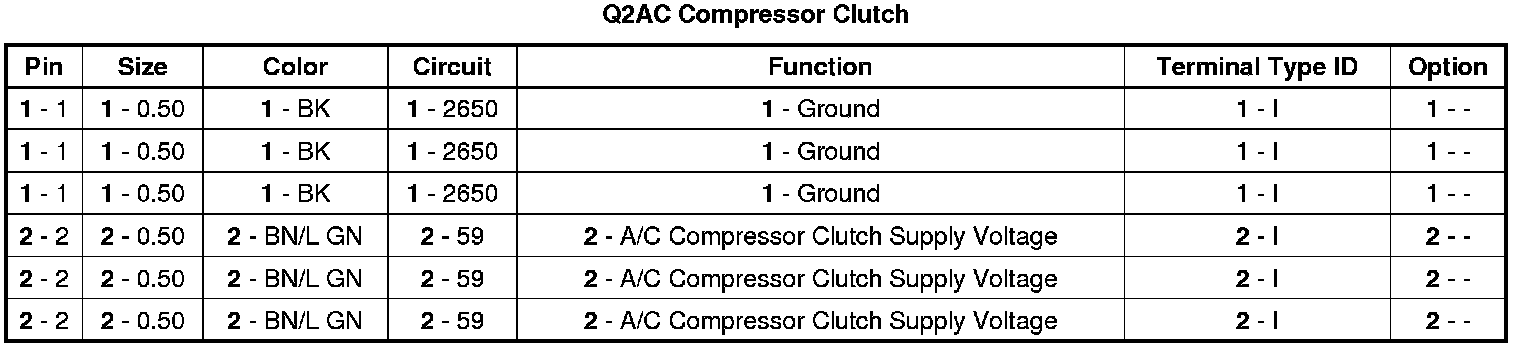

Q2AC Compressor Clutch
