Air Temperature Sensor - Duct Left Lower

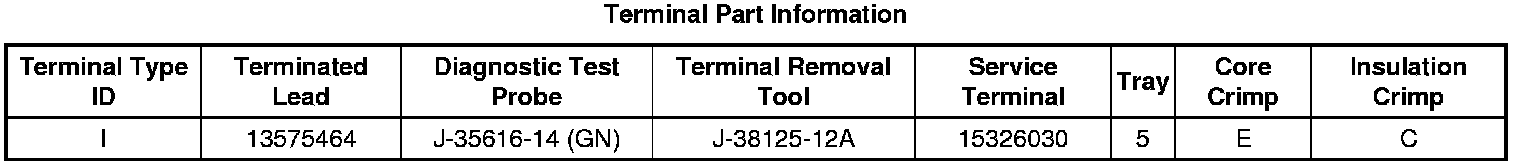

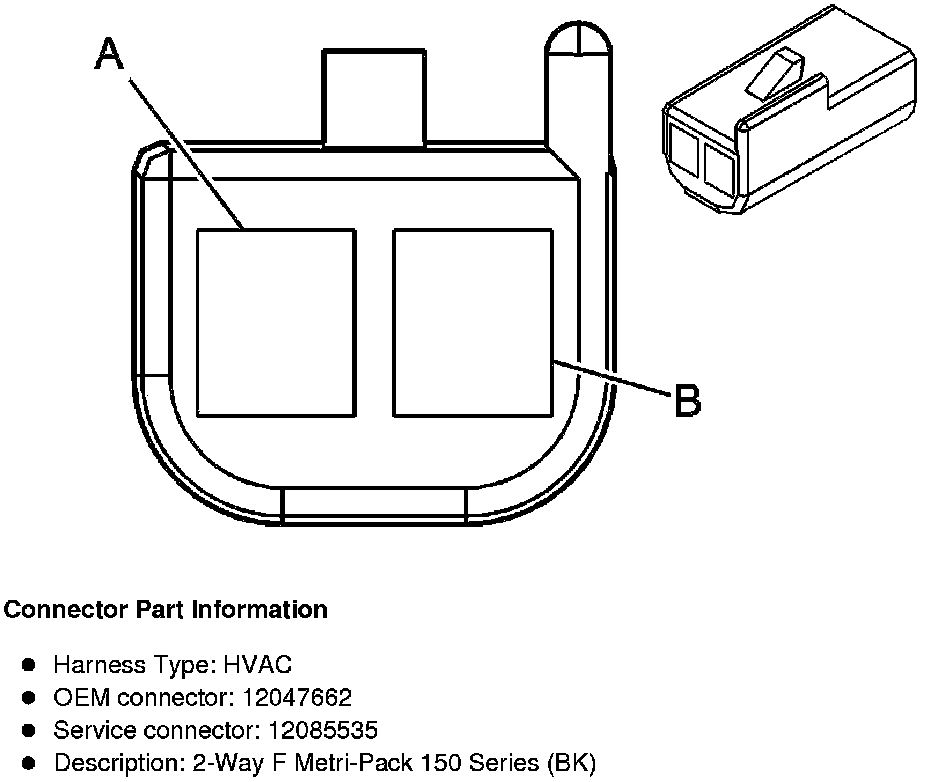

Component Connector End Views

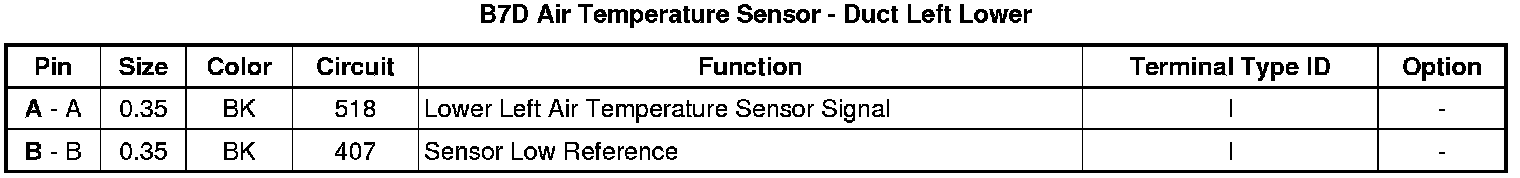

B7D Air Temperature Sensor - Duct Left Lower
