Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust

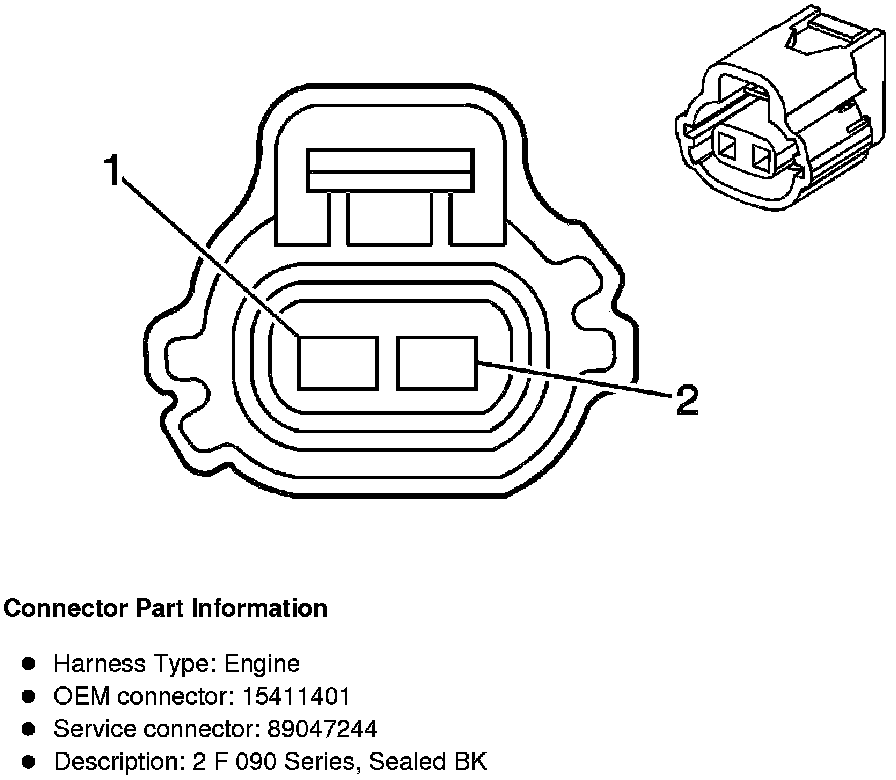

Component Connector End Views

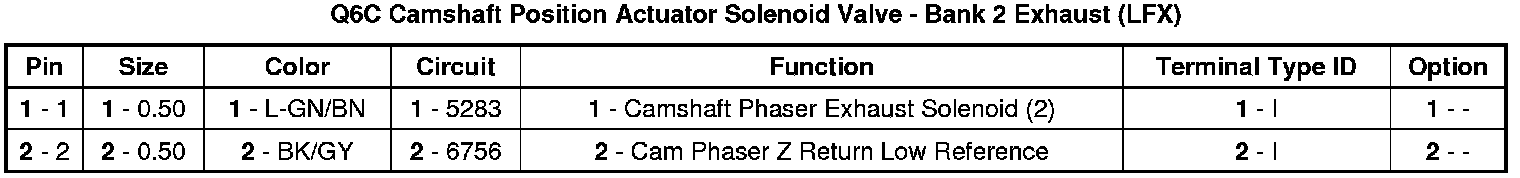

Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LFX)
