System Diagram

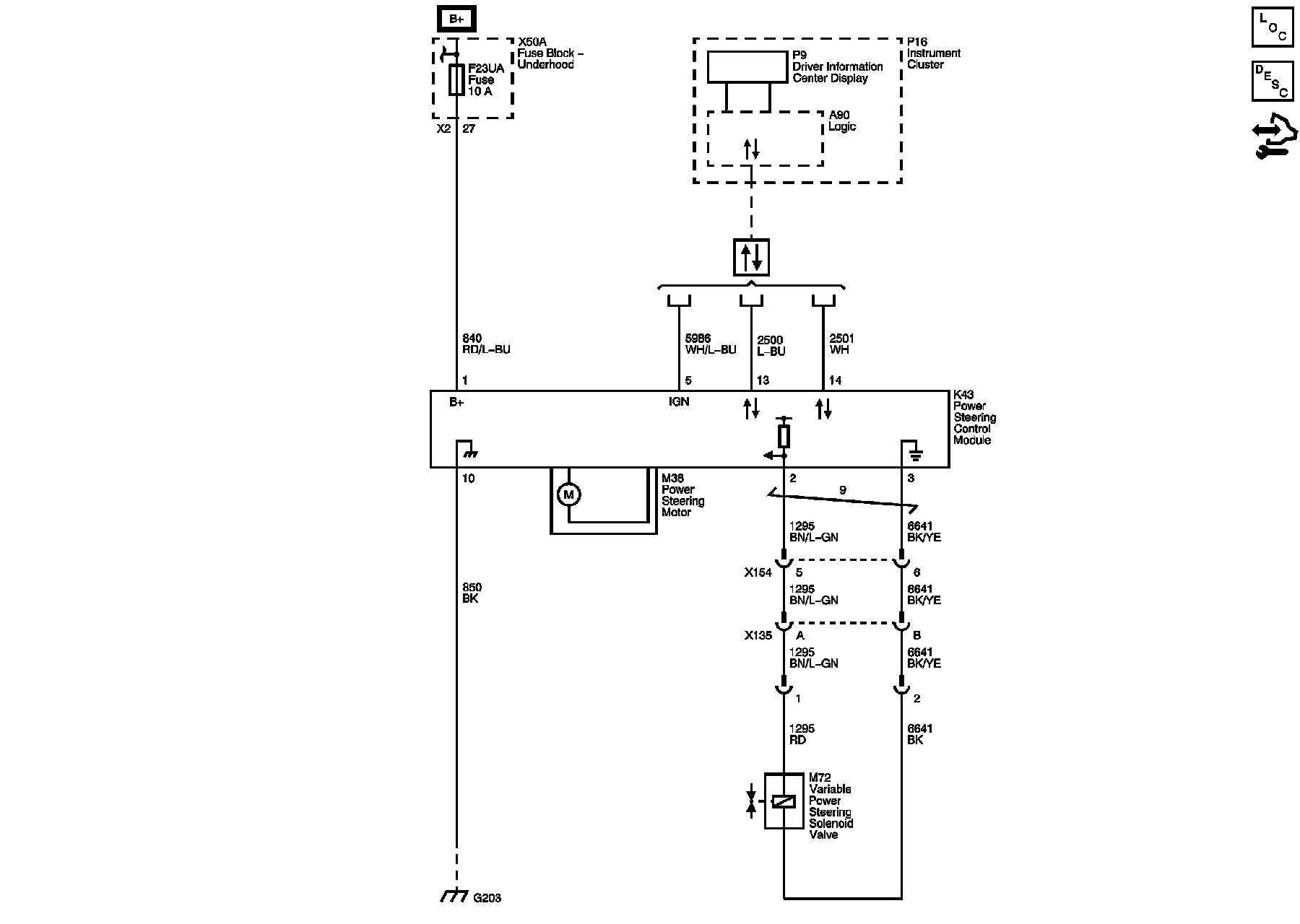

Power Steering Schematics

Variable Effort Steering

Variable Effort Steering System Description and Operation
Sensors and Actuators
