Trunk / Liftgate Switch
>>
Rear Compartment Lid Unlatch Switch - Interior
Rear Compartment Lid Unlatch Switch - Interior
Component Connector End Views

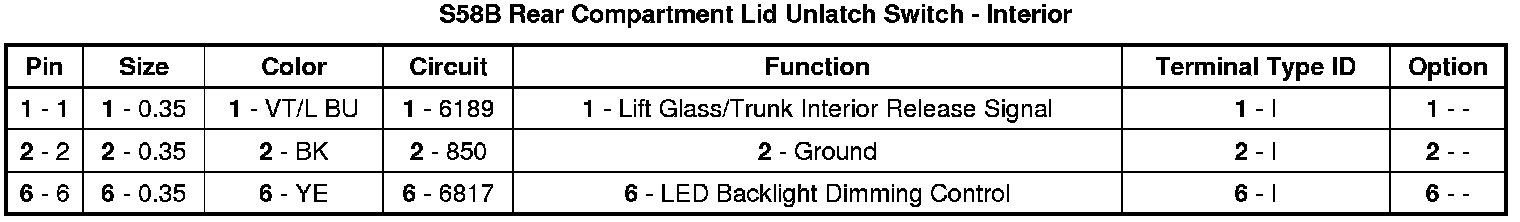

S58B Rear Compartment Lid Unlatch Switch - Interior
