Home
>>
Cadillac
>>
2013
>>
XTS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
>>
Seat Heating Element - Passenger Back (KA1)
Seat Heating Element - Passenger Back (KA1)

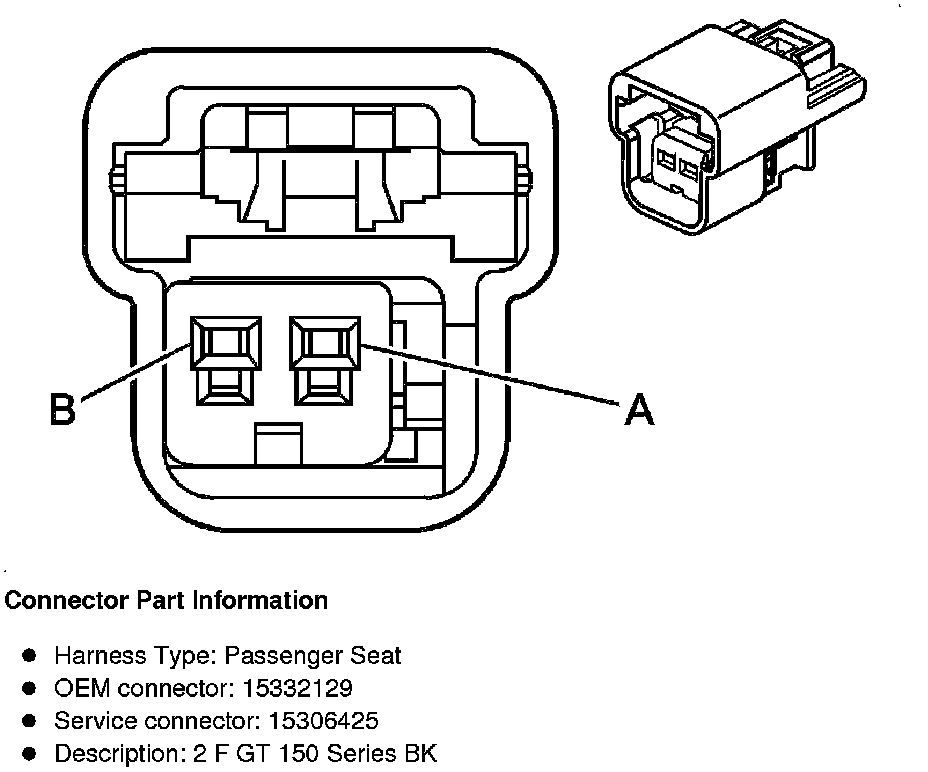

Component Connector End Views

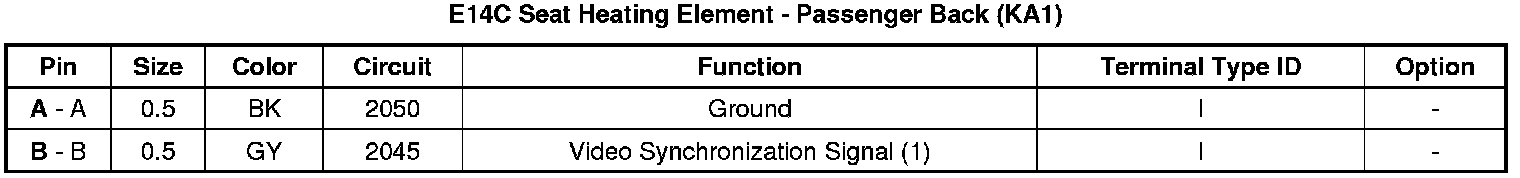

E14C Seat Heating Element - Passenger Back (KA1)
