Home
>>
Cadillac
>>
2013
>>
XTS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Window Switch - Left Rear
Window Switch - Left Rear

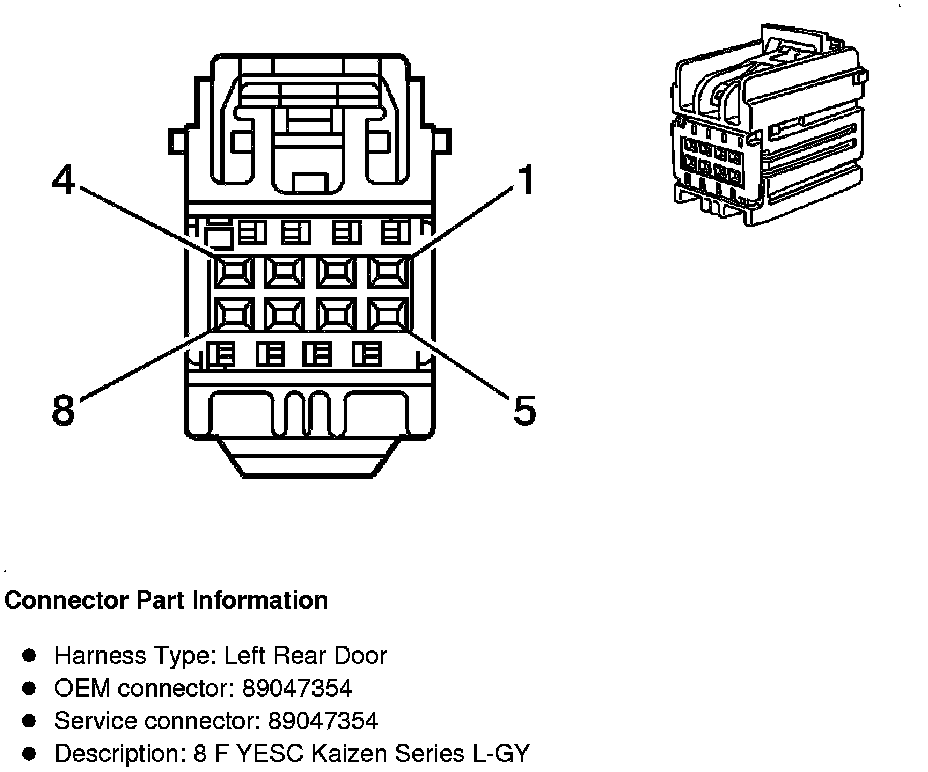

Component Connector End Views

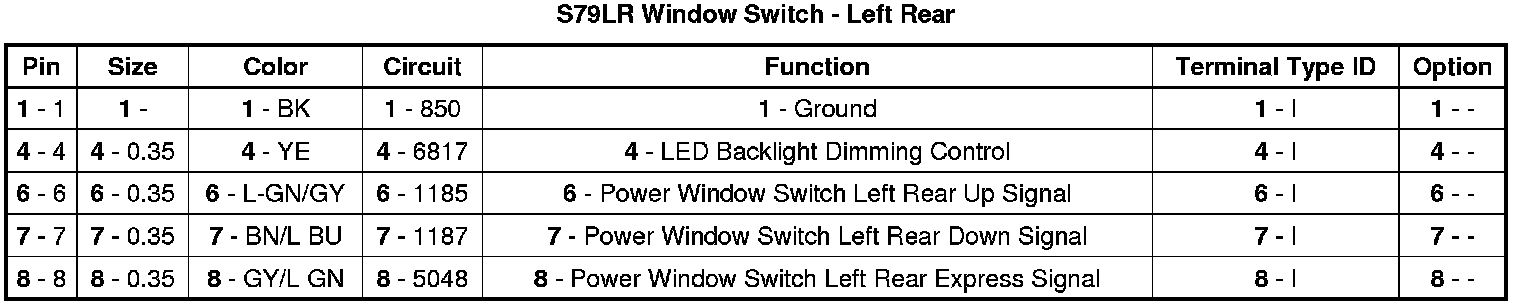

S79LR Window Switch - Left Rear
