Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Seat Lumbar Support Switch - Driver

Seat Lumbar Support Switch - Driver




Component Connector End Views

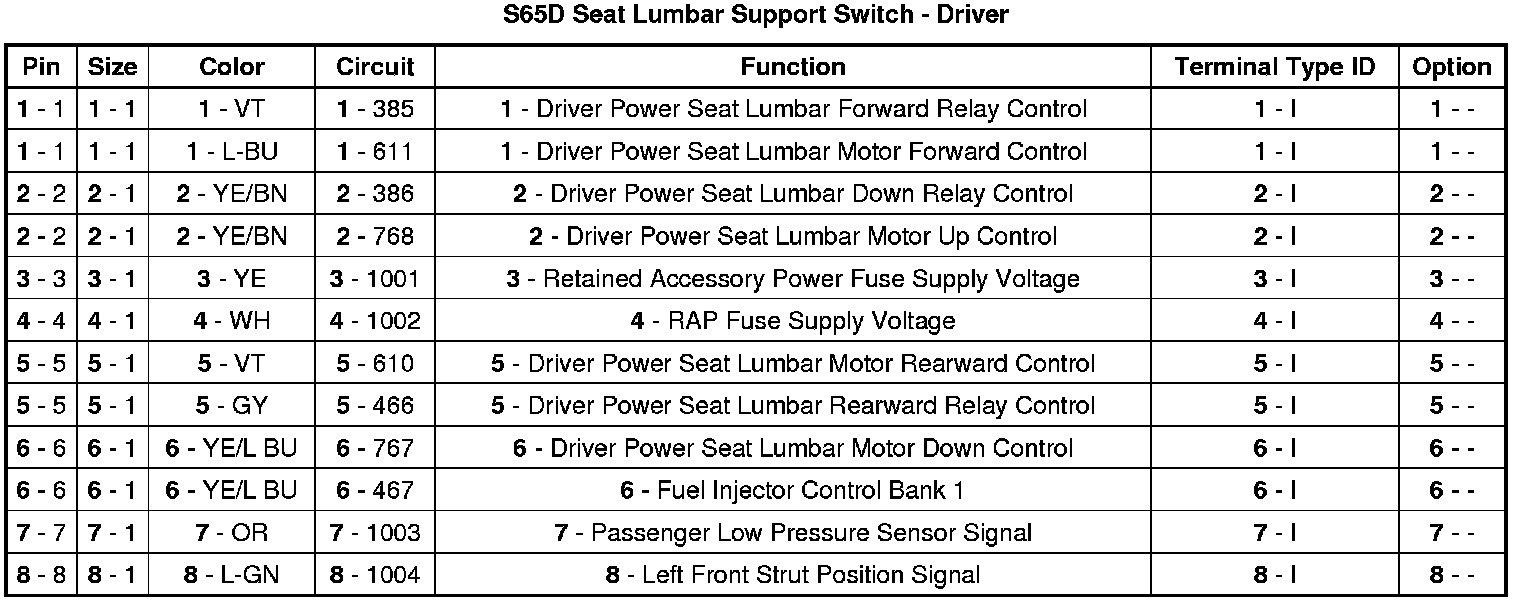

S65D Seat Lumbar Support Switch - Driver
