Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2013
>>
XTS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
Connector End Views By Name
>>
Head-Up Display Switch
Head-Up Display Switch
Component Connector End Views

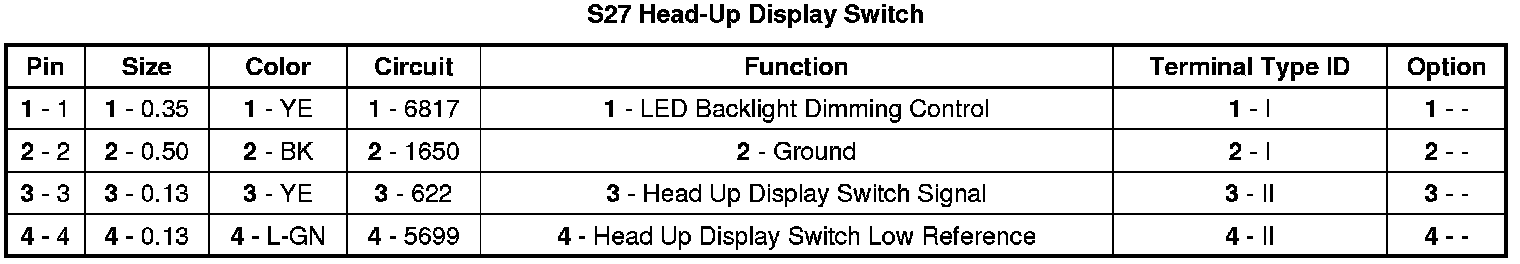

S27 Head-Up Display Switch
