Home
>>
Cadillac
>>
2013
>>
XTS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Horn
>>
Horn - Low Note
Horn - Low Note
Component Connector End Views

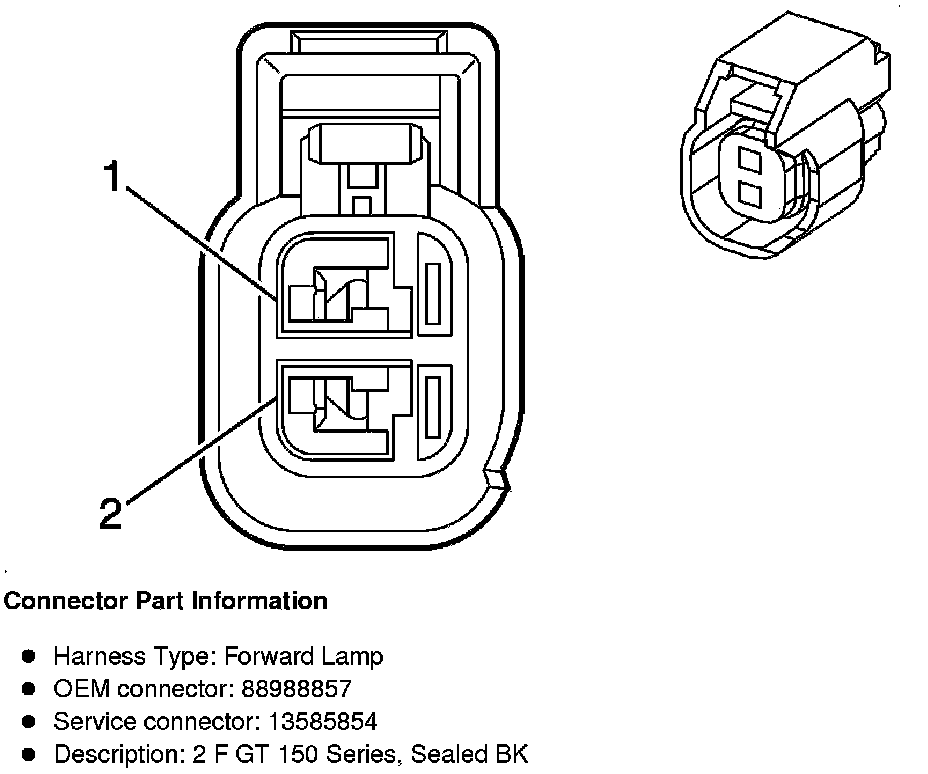

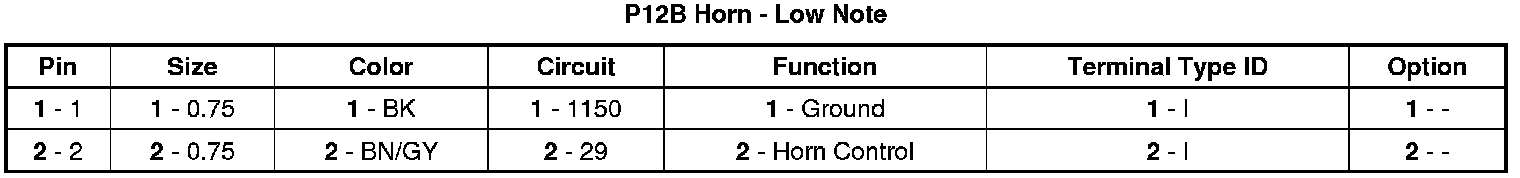

P12B Horn - Low Note
