X145
X145

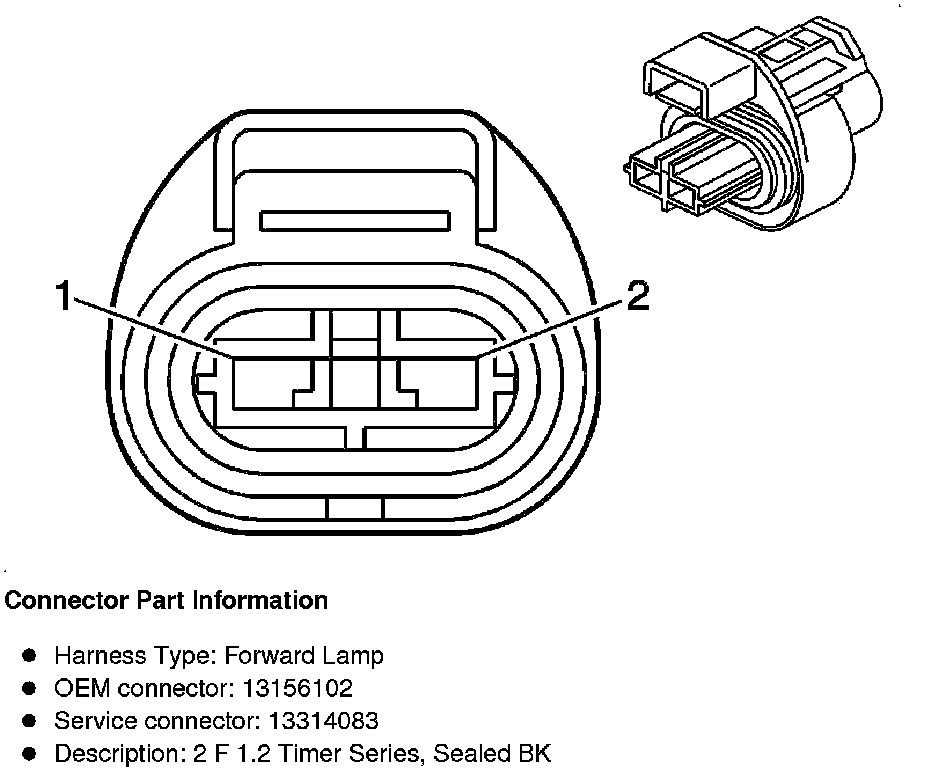

Inline Harness Connector End Views

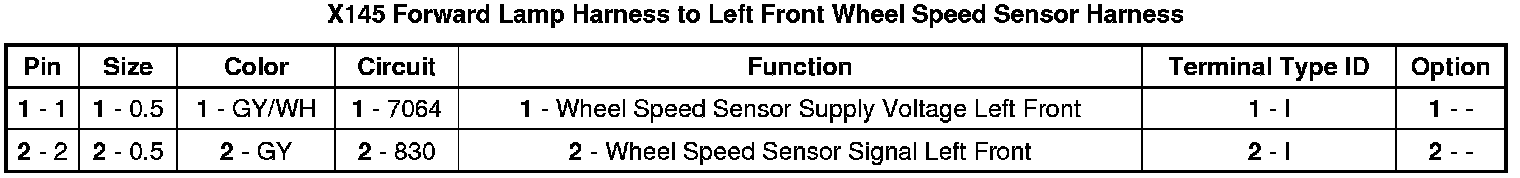

X145 Forward Lamp Harness to Left Front Wheel Speed Sensor Harness
